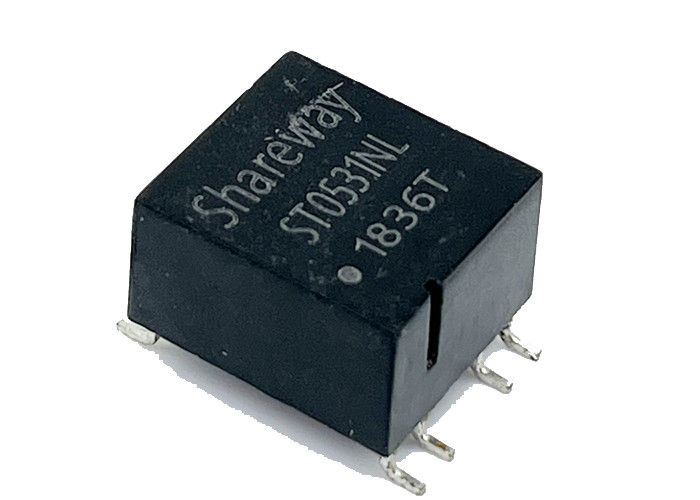

T60402-C4615-X065 SMT SMD Pulse Transformers Ethernet Magnetic Surface Mount For Meter

T60402-C4615-X065 SMT SMD Pulse Transformers Ethernet Magnetic Surface Mount For Meter

Characteristics:

• High inductance range
  High current range
  Small package
  Low profile
  Surface mount technology
  Wide range of filtering spectrum
  Climatic category 40/125/21
  Flammability corresponding to UL 94 V-0
  Turns Ratio:2.9:1:1
  Inductance:14.4 mH
  Voltage Time - Et:340 V us

  Mounting Style:Through Hole

  Length:22.5 mm

  Width:22.5 mm

  Height:20 mm

  Brand:Vacuumschmelze



• Maximum Operating Temperature:	+ 105 C
  Minimum Operating Temperature:	- 40 C
  Operating Temperature Range:	- 40 C to + 105 C
  Packaging:	Bulk
  Primary Voltage Rating:	1.2 kV
  Product:	Gate Drive Transformer
  Product Type:	Pulse Transformers

Applications:

Filtering

DC power lines

Buck-/ Boost Converter filtering

Data lines with low bitrate

Heavily influenced lines

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
