Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: ST4618NL
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.30 to USD$0.85
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Type: |
SMT Choke |
Shareway P/n: |
ST4618NL |
Cross P/n: |
760390014 |
PIN: |
6 PINS |
Turn Ratio: |
1.1CT : 1CT |
Inductance: |
475uH MIN |
DCR: |
(1-3) 0.31Ω MAX |
Current Rating: |
350 MA AC |
ET Constant: |
11V-us MIN |
RoHS Compliance: |
Yes |
Sample: |
Free Sample Supported |
Type: |
SMT Choke |
Shareway P/n: |
ST4618NL |
Cross P/n: |
760390014 |
PIN: |
6 PINS |
Turn Ratio: |
1.1CT : 1CT |
Inductance: |
475uH MIN |
DCR: |
(1-3) 0.31Ω MAX |
Current Rating: |
350 MA AC |
ET Constant: |
11V-us MIN |
RoHS Compliance: |
Yes |
Sample: |
Free Sample Supported |

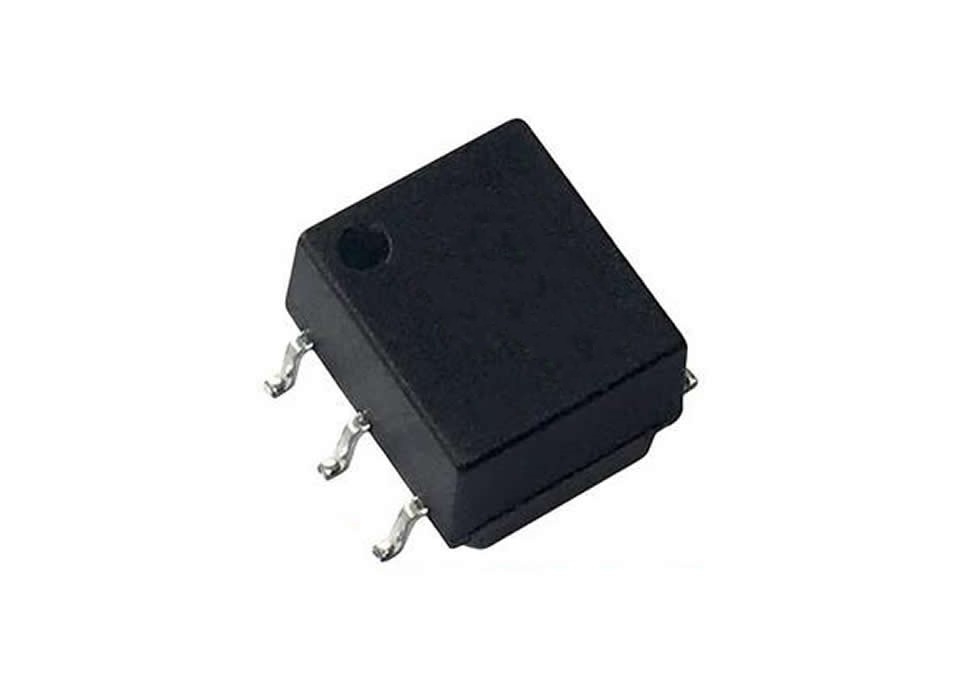

Shareway SMT Isolation Choke Transformer for Reflow soldering cross to 760390014
ELECTRICAL SPECFICATIONS@25℃:
1. Turn Ratio(±2%): (6-4):(1-3)=1.1CT:1CT
2. Inductance(10KHz/0.1V)(1-3): 475uH MIN
3. DCR : (1-3) 0.31Ω MAX
4. DCR : (6-4) 0.33Ω MAX
5. Current Rating: 350 mAAC
6. ET Constant: 11V-us MIN
7. HI-POT(1-6): 2500Vrms/0.5mA/60Sec or 3125Vrms/0.5mA/1Sec
8. Operating Temperature: -40℃ TO +90℃
9. RoHS compliance:YES
Mechanical Dimensions:
IR Reflow Diagram:
Tape & Reel package:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
For further information, please contact Karen (sales04@shareway-tech.com) freely!
