Product Name: |
750312791 FLYTI Flyback Transformers For Auxiliary Power Supplies |
Usage: |
For Auxiliary Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
- 40 C To + 125 C |
Inductance: |
10uH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
750312791 FLYTI Flyback Transformers For Auxiliary Power Supplies |
Usage: |
For Auxiliary Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
- 40 C To + 125 C |
Inductance: |
10uH |
Package: |
Cut Tape /MouseReel/ Reel |
750312791 FLYTI Flyback Transformers for Auxiliary power supplies
Characteristics
Applications
750312791 FLYTI Flyback Transformers for Auxiliary power supplies
Electrical Properties:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C. RESISTANCE 4-2 |
@20℃ |
0.025 ohms max. |
|
D.C.RESISTANCE 3-1 |
@20℃ |
0.025 ohms max. |
|
D.C. RESISTANCE 6-5 |
@20℃ |
0.260 ohms ±10% |
|
D.C. RESISTANCE 9-11 |
@20℃ |
0.250 ohms ±10% |
|
INDUCTANCE 1-4 |
tie(2+1, 4+3), 10kHz,100mVAC,Ls |
10uH ±10% |
|
SATURATION CURRENT 1-4 |
tie(2+1, 4+3), 20% rolloff from initial |
8.75A |
|
LEAKAGE INDUCTANCE 1-4 |
tie(2+1,4+3,6+5,9+10+11), 100kHz,10mVAC,Ls |
100nH max. |
|
DIELECTRIC 1-9 |
tie(1+2+6), 1875VAC, 1 second |
1500VAC,1 minute |
|
DIELECTRIC 1-6 |
tie(1+2), 625VAC, 1 second |
500VAC, 1 minute |
|
TURNS RATI0 |
(9-10):(10-11) |
1:1,±1% |
|
TURNS RATI0 |
(9-11):(4-2),tie(4+3,2+1) |
5:1,±1% |
|
TURNS RATI0 |
(9-11):(3-1) |
5:1,±1% |
|
TURNS RATI0 |
(9-11):(6-5) |
4.44:1,±1% |
Shape and Dimensions:

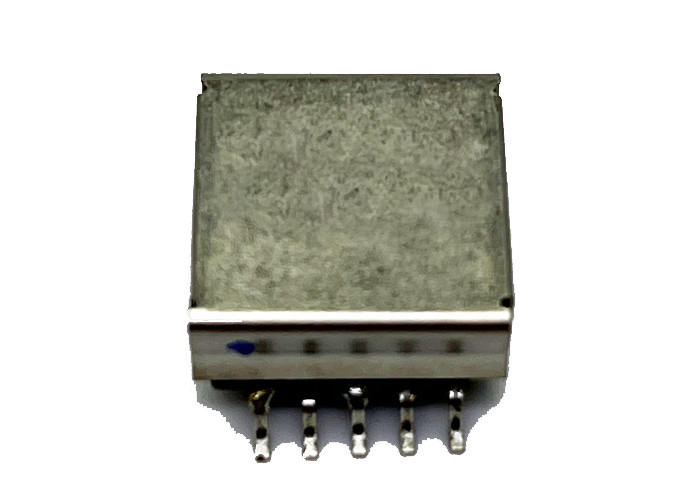

Product picture:
750312791 FLYTI Flyback Transformers for Auxiliary power supplies
