Product Name: |
750315252 EFD20 SMPS Flyback Transformer For Isolated DC/DC Power Supplies |
Usage: |
For Isolated DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
- 40 C To + 125 C |
Inductance: |
60uH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
750315252 EFD20 SMPS Flyback Transformer For Isolated DC/DC Power Supplies |
Usage: |
For Isolated DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
- 40 C To + 125 C |
Inductance: |
60uH |
Package: |
Cut Tape /MouseReel/ Reel |
750315252 EFD20 SMPS Flyback Transformer for Isolated DC/DC power supplies
Characteristics
Applications
750315252 EFD20 SMPS Flyback Transformer for Isolated DC/DC power supplies
Electrical Properties:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C. RESISTANCE 1-4 |
@20℃ |
0.085 ohms ±15% |
|
D.C.RESISTANCE 8-5 |
@20℃ |
0.077 ohms ±15% |
|
INDUCTANCE 1-4 |
10kHz,100mVAC,Ls |
60.0uH ±10% |
|
SATURATION CURRENT 1-4 |
20% rolloff from initial |
3.8A |
|
LEAKAGE INDUCTANCE 1-4 |
ie(5+8),100kHz,100mVAC,Ls |
1.0uH typ.,1.5uH max. |
|
DIELECTRIC 1-8 |
3750VAC,1 second |
3000VAC,1 minute |
|
TURNS RATIO |
(8-5):(1-4) |
1.33:1,±1% |
Shape and Dimensions:

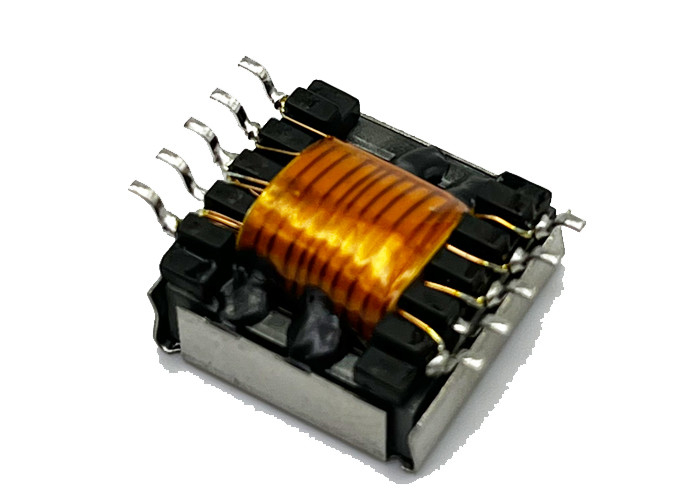

Product picture:
750315252 EFD20 SMPS Flyback Transformer for Isolated DC/DC power supplies
