Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: CMT3-32-1L
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
CMT3-32-1L Through-hole Common Mode Line Chokes Power Inductor |
Usage: |
For Electronics |
Mount: |
Through-hole |
Product Type:: |
Common Mode Line Chokes |
Operating Temperature Range: |
–40°C To +85°C |
Inductance: |
32 MH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
CMT3-32-1L Through-hole Common Mode Line Chokes Power Inductor |
Usage: |
For Electronics |
Mount: |
Through-hole |
Product Type:: |
Common Mode Line Chokes |
Operating Temperature Range: |
–40°C To +85°C |
Inductance: |
32 MH |
Package: |
Cut Tape /MouseReel/ Reel |
CMT3-32-1L through-hole Common Mode Line Chokes power inductor
Characteristics
Electrical Properties:
| Part number |
Common mode peak impedance (kOhms) |
Inductance1 min (mH) |
DCR max2 (Ohms) |
Leakage inductance3 max (µH) |
Isolation4 (Vrms) |
Irms (A) |
| CMT3-32-1L | 41.91 @ 0.10 MHz | 32 | 0.650 | 485 | 1250 | 1 |
| CMT3-56-1L | 12.04 @ 0.10 MHz | 56 | 0.900 | 780 | 1250 | 1 |
| CMT3-16-2L | 215.13 @ 0.12 MHz | 16 | 0.240 | 210 | 1250 | 2 |
| CMT3-28-2L | 29.82 @ 0.10 MHz | 28 | 0.330 | 410 | 1250 | 2 |
| CMT3-8-4L | 19.83 @ 0.27 MHz | 8.0 | 0.061 | 57.5 | 1250 | 4 |
| CMT3-14-4L | 149.83 @ 0.12 MHz | 14 | 0.120 | 180 | 1250 | 4 |
| CMT3-6.6-6L | 20.13 @ 0.32 MHz | 6.6 | 0.048 | 49 | 1250 | 6 |
| CMT3-11.5-6L | 215.01 @ 0.18 MHz | 11.5 | 0.088 | 140 | 1250 | 6 |
| CMT3-4-9L | 13.83 @ 0.43 MHz | 4.0 | 0.026 | 37 | 1250 | 9 |
| CMT3-7-9L | 79.68 @ 0.16 MHz | 7.0 | 0.045 | 104 | 1250 | 9 |
| CMT3-3-12L | 28.53 @ 0.46 MHz | 3.0 | 0.022 | 40 | 1250 | 12 |
| CMT3-5.2-12L | 26.76 @ 0.38 MHz | 5.2 | 0.025 | 47 | 1250 | 12 |
| CMT3-2.5-15L | 14.64 @ 0.34 MHz | 2.5 | 0.019 | 42 | 1250 | 15 |
| CMT3-4.4-15L | 9.56 @ 0.37 MHz | 4.4 | 0.017 | 48 | 1250 | 15 |
Shape and Dimensions:

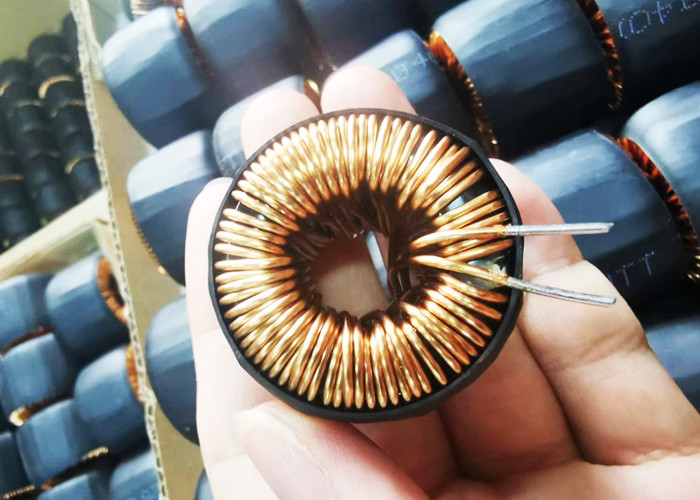

Product picture:
CMT3-32-1L through-hole Common Mode Line Chokes power inductor
