Product Name: |
MSD1583-103MED Surface Mount SMD Power Inductor For Flyback Applications |
Usage: |
For Flyback Applications |
Mount: |
Surface Mount |
Product Type:: |
Isolated Buck Transformers |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
10uH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
MSD1583-103MED Surface Mount SMD Power Inductor For Flyback Applications |
Usage: |
For Flyback Applications |
Mount: |
Surface Mount |
Product Type:: |
Isolated Buck Transformers |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
10uH |
Package: |
Cut Tape /MouseReel/ Reel |
MSD1583-103MED Surface Mount SMD Power Inductor for Flyback applications
Characteristics
Electrical Properties:
|
Part number
|
Common mode
impedance
max (kOhms)
|
Cutoff
frequency
(MHz)
|
Inductance (µH)
|
DCR max
(Ohms)
|
Isolation
(Vrms)
|
Irms
(A)
|
|
| min | nom | ||||||
|
MSD1583-103MED
|
10.86 @ 17 MHz
|
38 |
8.0
|
10 |
0.031
|
500
|
3.68
|
|
MSD1583-123MED
|
12.11 @ 16 MHz
|
30 |
9.6
|
12 |
0.037
|
500
|
3.54
|
|
MSD1583-153MED
|
12.31 @ 14 MHz
|
25 |
12.0
|
15 |
0.045
|
500
|
3.18
|
|
MSD1583-183MED
|
15.77 @ 13 MHz
|
25 |
14.4
|
18 | 0.048 |
500
|
3.04
|
|
MSD1583-223MED
|
14.47 @ 12 MHz
|
28 |
17.6
|
22 |
0.065
|
500
|
2.44
|
|
MSD1583-333MED
|
33.82 @ 9 MHz
|
28 |
26.4
|
33 |
0.095
|
500
|
2.16
|
|
MSD1583-473MED
|
39.79 @ 7.6 MHz
|
23 |
37.6
|
47 |
0.115
|
500
|
1.98
|
|
MSD1583-683MED
|
49.24 @ 5.9 MHz
|
17 |
54.4
|
68 |
0.165
|
500
|
1.56
|
|
MSD1583-104KED
|
69.83 @ 5 MHz
|
16 |
90.0
|
100 |
0.260
|
500
|
1.24
|
|
MSD1583-154KED
|
73.09 @ 3.9 MHz
|
12 |
135
|
150 |
0.380
|
500
|
1.06
|
|
MSD1583-224KED
|
78.91 @ 3.3 MHz
|
9.7 |
198
|
220 |
0.460
|
500
|
0.92
|
|
MSD1583-474KED
|
104.9 @ 2.2 MHz
|
7.4 |
423
|
470 |
1.04
|
500
|
0.65
|
|
MSD1583-105KED
|
129.0 @ 1.5 MHz
|
5.8 | 900 | 1000 |
2.40
|
500
|
0.42
|
Shape and Dimensions:
Product picture:

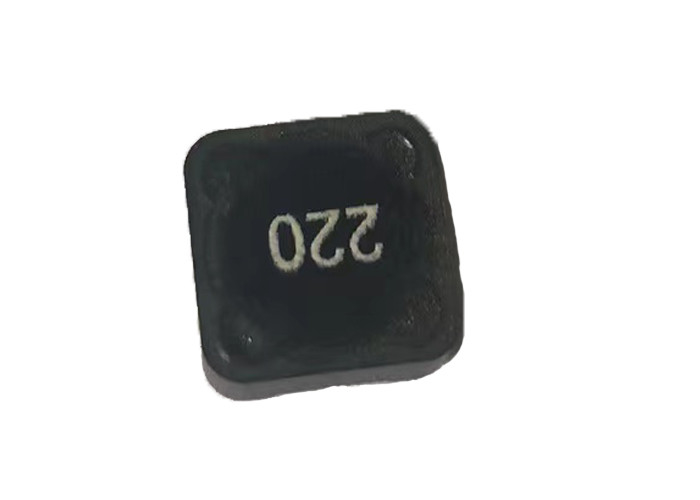

MSD1583-103MED Surface Mount SMD Power Inductor for Flyback applications
