Product Name: |
750316708 Low Leakage Inductance Low Profile SMPS Flyback Transformer |
Usage: |
For Auxiliary Power Supplies |
Product Type:: |
SMPS Flyback Transformer |
Operating Temperature Range: |
-40°C To 125°C |
Termination Type: |
Through-hole |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
750316708 Low Leakage Inductance Low Profile SMPS Flyback Transformer |
Usage: |
For Auxiliary Power Supplies |
Product Type:: |
SMPS Flyback Transformer |
Operating Temperature Range: |
-40°C To 125°C |
Termination Type: |
Through-hole |
Package: |
Cut Tape /MouseReel/ Reel |
750316708 Low leakage inductance Low profile SMPS Flyback Transformer
Characteristics
Applications
Electrical Properties:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C. RESISTANCE 3-1 |
@20℃ |
0.030 ohms ±20% |
|
D.C.RESISTANCE 4-5 |
@20℃ |
0.470 ohms ±10% |
|
D.C. RESISTANCE 6-10 |
tie(6+7,9+10),@20℃ |
0.010 ohms max. |
|
INDUCTANCE 3-1 |
10kHz,100mVAC, Ls |
42.0uH ±10% |
|
SATURATION CURRENT 3-1 |
20% rolloff from initial |
7A |
|
LEAKAGE INDUCTANCE 3-1 |
tie(4+5,6+7+9+10), 100kHz,100mVAC,Ls |
500nH typ., 750nH max. |
|
DIELECTRIC 1-10 |
tie(3+4,6+7), 1000VAC,1 second |
|
|
DIELECTRIC 1-5 |
625VAC,1 second |
|
|
TURNS RATIO |
(3-1):(10-6), tie(6+7,9+10) |
3:1,±1% |
|
TURNS RATIO |
(3-1):(4-5) |
3:1,±1% |
750316708 Low leakage inductance Low profile SMPS Flyback Transformer
Shape and Dimensions:

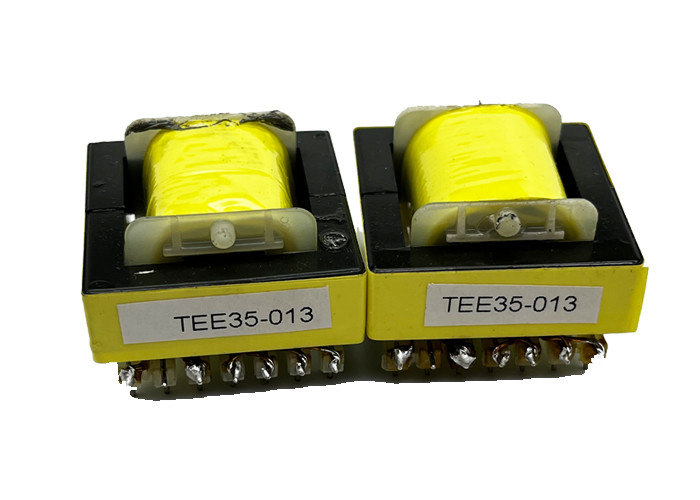

Product picture:
750316708 Low leakage inductance Low profile SMPS Flyback Transformer
