Through Hole Toroidal Common Mode Choke S14100038 Powered Iron Core For Meter Applications

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: S14100038

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tape

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

Meter Toroidal Common Mode Choke

,

Toroidal Common Mode Choke

,

S14100038

Product Name:
Choke Through Hole Toroidal S14100038 PFC Boost Inductor Powered Iron Core For Meter Applications
Type:
Common Mode Chokes
Application:
Meter Applications
Core Material:
Powered Iron
Terminations:
Tin-silver Over Copper
Characteristics 3:
Surface Mount Technology
Characteristics 4:
Wide Range Of Filtering Spectrum
Product Name:
Choke Through Hole Toroidal S14100038 PFC Boost Inductor Powered Iron Core For Meter Applications
Type:
Common Mode Chokes
Application:
Meter Applications
Core Material:
Powered Iron
Terminations:
Tin-silver Over Copper
Characteristics 3:
Surface Mount Technology
Characteristics 4:
Wide Range Of Filtering Spectrum
Through Hole Toroidal Common Mode Choke S14100038 Powered Iron Core For Meter Applications

Choke Through Hole Toroidal S14100038 PFC Boost Inductor Powered Iron Core For Meter Applications


Characteristics:

  • • Used as (PFC) Boost Inductor with Auxiliary Winding
    • Isolation Between Shield and Winding : 4.5K Vrms
    • All parts have Faraday Shield (except Toroid)
    • Isolation Between Winding : 1500 Vrms
    • UL 94V-0 Recognized Components
    • UL 1446 Class B Insulation System
    * Up to 100% Maximum Duty Cycle
    • Very Large Gap Ferrite
  • Inductance @ Frequency
    560 µH @ 10 kHz
    Current Rating (Max)
    20A
    DC Resistance (DCR) (Max)
    2.8mOhm
    Voltage Rating - DC
    -
    Voltage Rating - AC
    250V
    Operating Temperature
    -40°C ~ 125°C
  • Mounting Type
    Through Hole
    Size / Dimension
    1.181" Dia x 0.768" L (30.00mm x 19.50mm)
    Height (Max)
    1.142" (29.00mm)

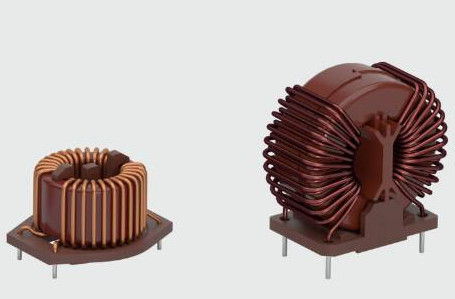

Through Hole Toroidal Common Mode Choke S14100038 Powered Iron Core For Meter Applications 0Through Hole Toroidal Common Mode Choke S14100038 Powered Iron Core For Meter Applications 1



Through Hole Toroidal Common Mode Choke S14100038 Powered Iron Core For Meter Applications 2Through Hole Toroidal Common Mode Choke S14100038 Powered Iron Core For Meter Applications 3







Notes :

1. Lead Finish: Hot Tin Dip Sn or SnCu
2. Peak Solder Rating: 260°C
3. Weight: TBD grams
4. Packaging Information Tape & Reel : TBD pieces/tray
