Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: PA6381-ALD
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: 0.4$~2.3$
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal, Western Union, MoneyGram
Supply Ability: 500K.PCS/Month
Product Name: |
PA6381-ALD SMPS Flyback 10W Transformers For LT3999 Push-Pull DC/DC Driver |
Usage: |
For LT3999 Push-Pull DC/DC Driver |
Mount: |
Surface Mount |
Product Type:: |
SMD Push-Pull Transformer |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
139 UH |
Package: |
Tube/ Tape& Reel |
Core Material: |
Ferrite |
Product Name: |
PA6381-ALD SMPS Flyback 10W Transformers For LT3999 Push-Pull DC/DC Driver |
Usage: |
For LT3999 Push-Pull DC/DC Driver |
Mount: |
Surface Mount |
Product Type:: |
SMD Push-Pull Transformer |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
139 UH |
Package: |
Tube/ Tape& Reel |
Core Material: |
Ferrite |
PA6381-ALD SMPS Flyback 10W Transformers for LT3999 Push-Pull DC/DC Driver
Characteristics
Applications
Electrical Specifications:
| Part Number | Trader Part Number | Input Voltage | Pri inductance | Lk | DCR pri | DCR Sec | V-T | Turns Ratio ( Pri:Sec) | Output | ||
| SA6381NL | PA6381-AL | 5.0 | 139 uH Min | 0.52 uH Max | 0.166 Ohm Max | 1.78 Ohm Max | 26 V-μsec | 1:3.46 | 12V,0.083A | ||
| SA6383NL | PA6383-AL | 5.0 | 29.7 uH Min | 0.19 uH Max | 0.035 Ohm Max | 0.067 Ohm Max | 12 V-μsec | 1:1.5 | 5V, 1.0A | ||
| SA6384NL | PA6384-AL | 12.0 | 82.5uH Min | 0.336 uH Max | 0.048 Ohm Max | 0.072 Ohm Max | 22 V-μsec | 1:1.4 | 12V, 0.83A |
Shape and Dimensions:

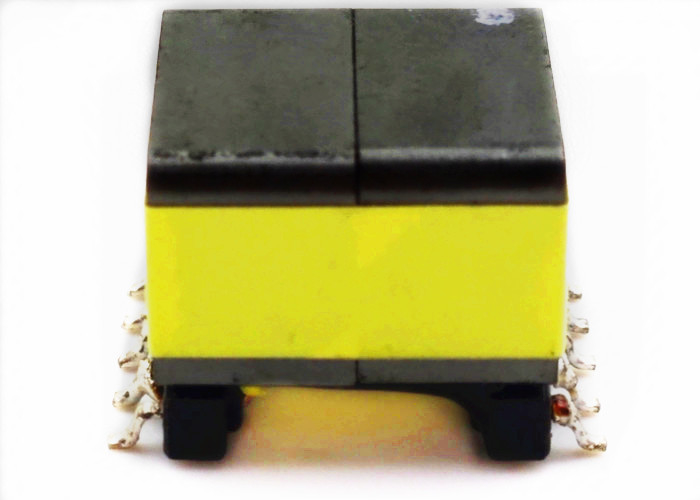

Product picture:
About us
ShareWay Technology CO., LTD. is a specialized manufacturer of PoE Components, products include PoE transformer, PoE RJ45 Magjack, PoE Lan Transformer, PoE Lan filter, and so on.
Established in 1998, we have around 500 staff at present. With the abundant productive capacity, we are able to deliver the goods within a short time. Moreover, we can provide a professional complete solution for PoE applications. Our products are widely used in networking and communication equipment such as HUB, PC cards, Switch, Route, PC Mainboard, SDH, PDH, and xDSL modems.
Company History
1997 ShareWay Technology CO., LTD. was founded in Shenzhen, Guangdong, China. Start selling the
discrete LAN Transformers, T1/E1 and xDSL Line Transformer.
1999 Established production base in Shenzhen, start producing the PoE Transformers, T1/E1
and xDSL Line Transformer.
2000 Obtained the ISO9000 certification.
2000 Develop PoE RJ45 connector which is with LAN transformers.
2002 Develop SMT and Vertical PoE RJ45 connector with magnetic.
2008 Develop SMT/DIP Power Inductor and Chokes
Contact us now to have a solution for your project and new design, we are always ready to share our successful Way with you.
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantities.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternatives for Halo, Pluse, We-online, Chilisin, and Coilcraft......Same quality but better price
3. Free samples available
4. Provide new design for customer
