Product Name: |
Compact Size Unshielded SMD Power Inductor For EMI Filter 74455022 |
Usage: |
For EMI Filter |
Mount: |
Surface Mount |
Product Type:: |
SMT Power Inductor |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
2.2 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
Compact Size Unshielded SMD Power Inductor For EMI Filter 74455022 |
Usage: |
For EMI Filter |
Mount: |
Surface Mount |
Product Type:: |
SMT Power Inductor |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
2.2 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Compact size Unshielded SMD Power Inductor For EMI Filter 74455022
Characteristics
Applications
Noise suppression, EMI Filter
Perfectly suitable for switching regulators e.g. National Semiconductor, Linear Technology, Maxim, Semtech, Texas Instruments, Fairchild Semiconductor, Cologne Chip, ON Semiconductor, STMicroelectronics, MPS, Exar, Analogic Tech and Diodes
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | 100 kHz/ 100 mV | 2.2 | µH | ±20% |
| Rated Current | I R | ΔT = 15 K | 2.4 | A | max |
| Saturation Current | ISAT | |ΔL/L| < 10 % | 2.3 | A | typ. |
| DC Resistance | RDC | @ 20 °C | 0.028 | Ω | typ. |
| DC Resistance | RDC | @ 20 °C | 0.07 | Ω | max |
| Self Resonant Frequency | f res | 50 | MHz | typ. | |
| Operating Voltage | V | DC | 120 | V | max |
Shape and Dimensions:
Product picture:

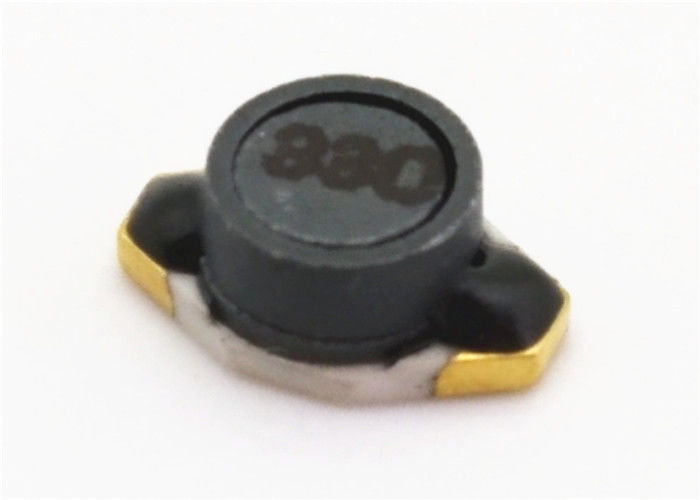

Compact size Unshielded SMD Power Inductor For EMI Filter 74455022
