Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: DS1608C-155ML
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Magnetically Shielded Surface Mount Power Inductors DS1608C-155ML |
Usage: |
For Linear Technology |
Mount: |
Surface Mount |
Product Type:: |
Surface Mount Power Inductors |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
1500 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
Magnetically Shielded Surface Mount Power Inductors DS1608C-155ML |
Usage: |
For Linear Technology |
Mount: |
Surface Mount |
Product Type:: |
Surface Mount Power Inductors |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
1500 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Magnetically shielded Surface Mount Power Inductors DS1608C-155ML
Characteristics
Electrical Properties:
| Part number | L ±20%2 (µH) | Q min |
DCR max (Ohms) |
SRF typ (MHz) |
Isat3 (A) |
| DS1608C-102ML_ | 1.0 | 30 @ 200 kHz | 0.040 | 250 | 1.4 |
| DS1608C-152ML_ | 1.5 | 30 @ 200 kHz | 0.045 | 125 | 0.93 |
| DS1608C-222ML_ | 2.2 | 40 @ 200 kHz | 0.050 | 120 | 0.92 |
| DS1608C-332ML_ | 3.3 | 40 @ 200 kHz | 0.055 | 120 | 0.75 |
| DS1608C-472ML_ | 4.7 | 40 @ 200 kHz | 0.060 | 105 | 0.58 |
| DS1608C-682ML_ | 6.8 | 40 @ 200 kHz | 0.065 | 50 | 0.58 |
| DS1608C-822ML_ | 8.2 | 40 @ 200 kHz | 0.070 | 42 | 0.47 |
| DS1608C-103ML_ | 10 | 40 @ 200 kHz | 0.075 | 38 | 0.37 |
| DS1608C-153ML_ | 15 | 40 @ 200 kHz | 0.090 | 33 | 0.31 |
| DS1608C-223ML_ | 22 | 40 @ 200 kHz | 0.11 | 25 | 0.30 |
| DS1608C-333ML_ | 33 | 40 @ 200 kHz | 0.19 | 20 | 0.30 |
| DS1608C-473ML_ | 47 | 40 @ 200 kHz | 0.23 | 20 | 0.24 |
| DS1608C-683ML_ | 68 | 40 @ 200 kHz | 0.29 | 15 | 0.17 |
| DS1608C-104ML_ | 100 | 40 @ 200 kHz | 0.48 | 10 | 0.13 |
| DS1608C-154ML_ | 150 | 40 @ 200 kHz | 0.59 | 9 | 0.10 |
| DS1608C-224ML_ | 220 | 40 @ 200 kHz | 0.77 | 6 | 0.10 |
| DS1608C-334ML_ | 330 | 40 @ 200 kHz | 1.4 | 5 | 0.07 |
| DS1608C-474ML_ | 470 | 40 @ 200 kHz | 1.8 | 4 | 0.06 |
| DS1608C-684ML_ | 680 | 40 @ 200 kHz | 2.2 | 3 | 0.055 |
| DS1608C-105ML_ | 1000 | 40 @ 200 kHz | 3.4 | 2 | 0.045 |
| DS1608C-155ML_ | 1500 | 50 @ 100 kHz | 4.2 | 2 | 0.035 |
| DS1608C-225ML_ | 2200 | 50 @ 100 kHz | 8.5 | 2 | 0.028 |
| DS1608C-335ML_ | 3300 | 50 @ 100 kHz | 11.0 | 1 | 0.024 |
| DS1608C-475ML_ | 4700 | 50 @ 100 kHz | 13.9 | 1 | 0.021 |
| DS1608C-685ML_ | 6800 | 50 @ 100 kHz | 25.0 | 1 | 0.019 |
| DS1608C-106ML_ | 10000 | 50 @ 100 kHz | 32.8 | 0.8 | 0.017 |
Shape and Dimensions:

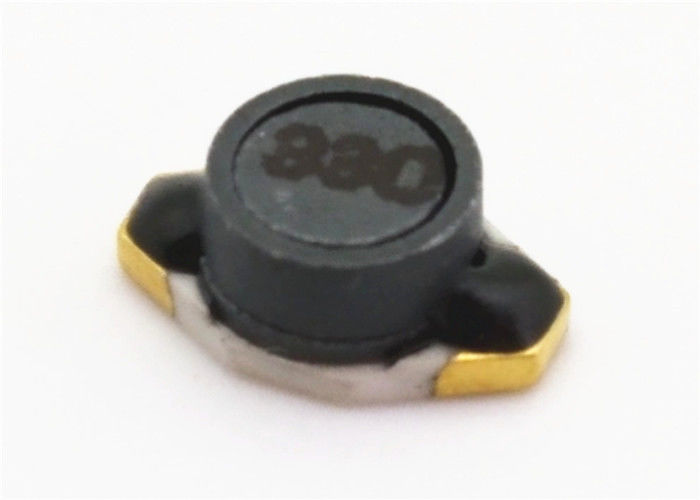

Product picture:
Magnetically shielded Surface Mount Power Inductors DS1608C-155ML
