Product Name: |
Through-hole 681 µH OLRM Offline Flyback Transformers 7508112349 |
Usage: |
For Industrial Controls |
Mount: |
Through-hole |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
681µH |
Package: |
Tape / Reel |
Product Name: |
Through-hole 681 µH OLRM Offline Flyback Transformers 7508112349 |
Usage: |
For Industrial Controls |
Mount: |
Through-hole |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
681µH |
Package: |
Tape / Reel |

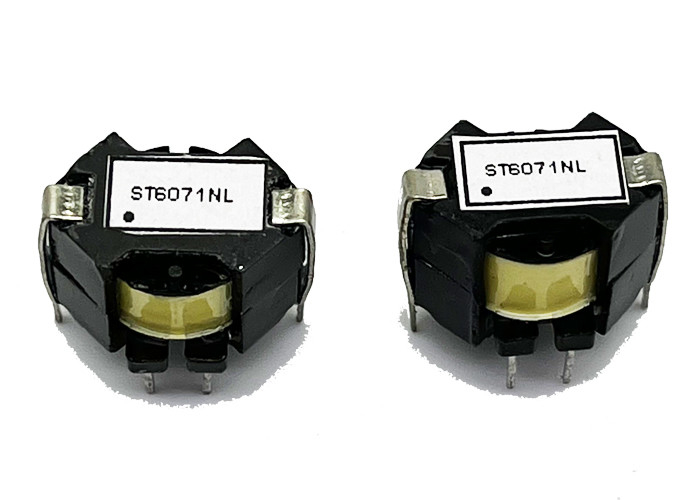

Through-hole 681 µH OLRM Offline Flyback Transformers 7508112349
Characteristics
Designed for IEC 61558-2-16 reinforced 265Vrms working voltage
Extended rail
Vertical core direction
Universal input from 85 VAC up to 265 VAC
Compact
Grounded core for improved EMI performance
Applications
White goods
Offline flyback applications
Industrial controls
LED lighting
Smart adapters
Metering
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | N1/ 10 kHz/ 100 mV | 681 | µH | ±10% |
| Turns Ratio | n | N1 : N2 : N3 | 8.75:1:1.38 | ||
| Saturation Current | I SAT | N1/ |ΔL/L| < 20 % | 2.5 | A | typ. |
| DC Resistance 1 | RDC 1 | N1/ 20 °C | 0.629 | Ω | ±10% |
| DC Resistance 2 | RDC 2 | N2/ 20 °C | 0.016 | Ω | ±10% |
| DC Resistance 3 | RDC 3 | N3/ 20 °C | 0.231 | Ω | ±10% |
| Leakage Inductance | L S | N1/ 100 kHz/ 100 mV | 14.7 | µH | max |
| Insulation Test Voltage | VT | N1 => N2 | 3900 | V (AC) | |
| Insulation Test Voltage | VT 2 | N1 => N3 | 500 | V (AC) |
Shape and Dimensions:
Product picture:
Through-hole 681 µH OLRM Offline Flyback Transformers 7508112349
