Product Name: |
EP13 Flyback Transformers For Isolated DC/DC Power Supplies 750317594 |
Usage: |
For Isolated DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
20 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
EP13 Flyback Transformers For Isolated DC/DC Power Supplies 750317594 |
Usage: |
For Isolated DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
20 µH |
Package: |
Cut Tape /MouseReel/ Reel |
EP13 Flyback Transformers for Isolated DC/DC power supplies 750317594
Characteristics
Applications
ELECTRICAL SPECIFICATIONS @ 25C unless otherwise noted:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C. RESISTANCE 1-2 |
@20℃ |
0.095 ohms ±10% |
|
D.C.RESISTANCE 3-5 |
@20℃ |
0.077 ohms ±10% |
|
D.C. RESISTANCE 7-9 |
@20℃ |
0.150 ohms ±10% |
|
INDUCTANCE 3-5 |
10kHz,100mVAC,Ls |
20.0uH ±10% |
|
SATURATION CURRENT 3-5 |
20% rolloff from initial |
6.0A |
|
LEAKAGE INDUCTANCE 3-5 |
tie(1+2,7+9), 100kHz,100mVAC,Ls |
300nH typ,1.0uH max. |
|
DIELECTRIC 3-7 |
tie(1+5), 1875VAC,1 second |
- |
|
DIELECTRIC 3-2 |
625VAC,1 second |
- |
|
TURNS RATI0 |
(3-5):(7-9) |
1:1,±1% |
|
TURNS RATI0 |
(3-5):(2-1) |
2:1,±1% |
|
TURNS RATI0 |
(3-4):(4-5) |
1:1,±1% |
Shape and Dimensions:

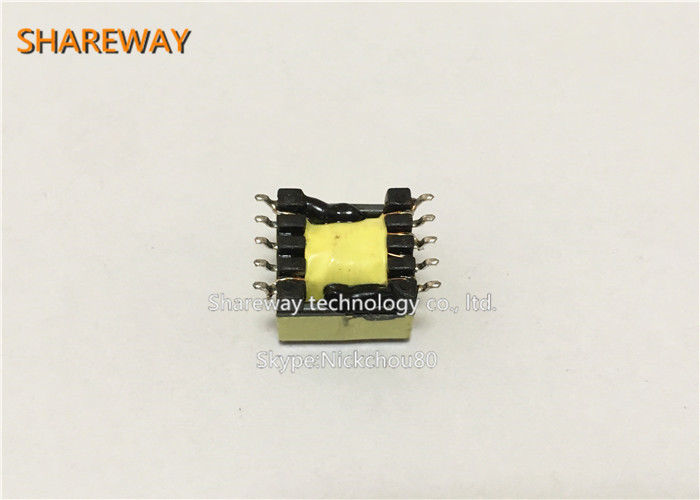

Product picture:
EP13 Flyback Transformers for Isolated DC/DC power supplies 750317594
