Product Name: |
EE13 SMPS Flyback Transformer For Medical Power Supplies 750813002 |
Usage: |
For Medical Power Supplies |
Mount: |
THT |
Product Type:: |
SMPS Flyback Transformer |
Operating Temperature Range: |
–40 °C Up To +85 °C |
Inductance: |
2.0 MH |
Package: |
Tape/ Reel |
Product Name: |
EE13 SMPS Flyback Transformer For Medical Power Supplies 750813002 |
Usage: |
For Medical Power Supplies |
Mount: |
THT |
Product Type:: |
SMPS Flyback Transformer |
Operating Temperature Range: |
–40 °C Up To +85 °C |
Inductance: |
2.0 MH |
Package: |
Tape/ Reel |
EE13 SMPS Flyback Transformer for Medical power supplies 750813002
Characteristics
Applications
Electrical properties:
| properties | test conditions | Value |
| D.C. RESISTANCE 1-2 | @20℃ | 6.25 ohms ±10% |
| D.C. RESISTANCE 3-4 | @20℃ | 1.70 ohms ±10% |
| D.C. RESISTANCE 5-8 | @20℃ | 0.035 ohms max |
| D.C. RESISTANCE 6-7 | @20℃ | 0.030 ohms max |
| Inductance 1-2 | 10kHz ,100mV ,Ls | 2.0mH ±20% |
| SATURATION CURRENT | 20% rolloff from initial | 350mA |
| LEAKAGE INDUCTANCE 1-2 | tie (3+4,5+6+7+8),4500VAC,1 second | 20uH typ.,40uH max. |
| DIELECTRIC 2-8 | tie (1+3,7+8),4500VAC,1 second | 4500VAC, 1minute |
| DIELECTRIC 2-3 | 1250VAC,1 second | 1000VAC, 1minute |
| Turns ratio | (2-1):(8-5) | 20:1 ±1% |
| Turns ratio | (2-1):(7-6) | 20:1 ±1% |
| Turns ratio | (2-1):(3-4) | 4:1 ±1% |
Tab down non-PoE RJ45 Connector with integrated transformer 7499011121A
Shape and Dimensions:
Product picture:

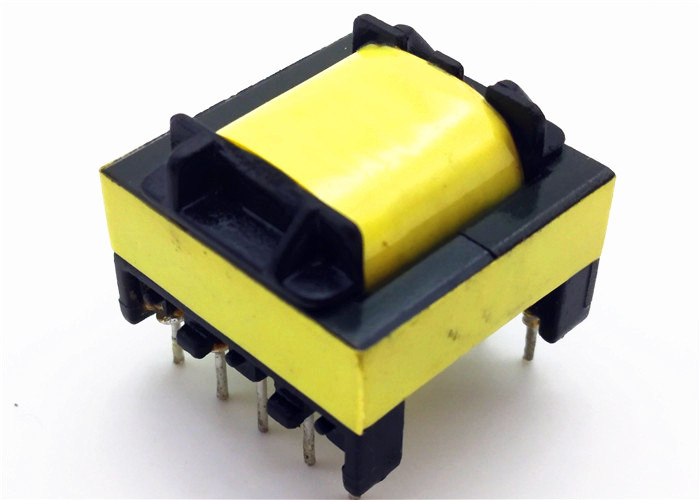

EE13 SMPS Flyback Transformer for Medical power supplies 750813002
