Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray in Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
PoE 5v To 57v High Power Over Ethernet Transformer |
Bobbin Material: |
Phenolic/bakelite |
Product Type: |
Vertical |
Coil Structure: |
Toroidal |
Core: |
Ferrite Core |
Mounting Type: |
SMD |
Product Name: |
PoE 5v To 57v High Power Over Ethernet Transformer |
Bobbin Material: |
Phenolic/bakelite |
Product Type: |
Vertical |
Coil Structure: |
Toroidal |
Core: |
Ferrite Core |
Mounting Type: |
SMD |
PoE 5v To 57v high Power Over Ethernet Transformer
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 57 | μH | ±10% |
| Turns ratio | LS | 8 : 1 : 2 | ±3% | ||
| Saturation current | |ΔL/L| < 20% | Isat | 4.7 | A | typ. |
| DC Resistance 1 | @ 20°C | RDC1 | 60 | mΩ | max. |
| DC Resistance 2 | @ 20°C | RDC2 | 350 | mΩ | max. |
| DC Resistance 3 | @ 20°C | RDC3 | 8.0 | mΩ | max. |
| DC Resistance 4 | @ 20°C | RDC4 | 350 | mΩ | max. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 1.2 | μH | max. |
| Insulation test voltage | N1,4 => N2,3 | UT | 1500 | V (DC) |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

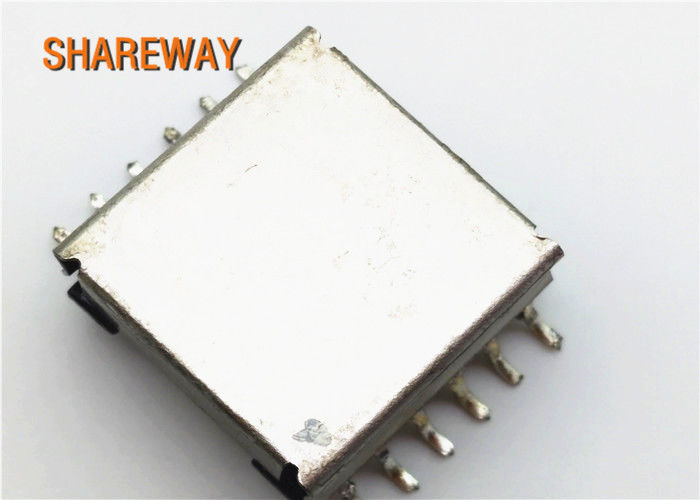

Product Picture:
PoE 5v To 57v high Power Over Ethernet Transformer
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
