Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 750314624
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
THT IBTI Isolated Buck Transformers For Building Automation 750314624 |
Usage: |
For Building Automation |
Mount: |
Through-hole |
Product Type:: |
IBTI Isolated Buck Transformers |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
60 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
THT IBTI Isolated Buck Transformers For Building Automation 750314624 |
Usage: |
For Building Automation |
Mount: |
Through-hole |
Product Type:: |
IBTI Isolated Buck Transformers |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
60 UH |
Package: |
Cut Tape /MouseReel/ Reel |
THT IBTI Isolated Buck Transformers For Building automation 750314624
Characteristics
Applications
Industrial Programmable Logic Controllers (PLCs)
Building automation and process control
Isolated interface power: RS-422, RS-485, CAN, I2C, LAN
Motor drive control, inverters and industrial automation
Isolated low power drivers & regulators, smart e-meters
Bias power supplies for gate drives and op-amps
Electrical Properties:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C. RESISTANCE 3-4 |
@20℃ |
0.075 ohms ±10% |
|
D.C.RESISTANCE 2-5 |
@20℃ |
0.103 ohms ±10% |
|
D.C. RESISTANCE 7-8 |
@20℃ |
0.360 ohms ±10% |
|
D.C. RESISTANCE 8-9 |
@20℃ |
0.542 ohms ±10% |
|
D.C. RESISTANCE 12-13 |
@20℃ |
0.360 ohms ±10% |
|
D.C. RESISTANCE 13-14 |
@20℃ |
0.542 ohms ±10% |
|
INDUCTANCE 2-5 |
tie(2+3, 4+5), 10kHz,100mVAC,Ls |
60uH ±10% |
|
SATURATION CURRENT |
20% rolloff from initial |
1.55A |
|
LEAKAGE INDUCTANCE 2-5 |
tie(2+3,4+5, 7+8+9+12+13+14), 100kHz,10mVAC,Ls |
400nH typ.. 800nH max. |
|
DIELECTRIC 2-14 |
tie(4+5, 9+12), 5000VAC,1 second |
5000VAC,1 minute |
|
DIELECTRIC 9-12 |
1875VAC,1 second |
1875VAC,1 minute |
|
TURNS RATI0 |
(2-5):(3-4) |
1:1,±1% |
|
TURNS RATI0 |
(3-4):(7-8) |
1.08:1,±1% |
|
TURNS RATI0 |
(8-9):(3-4) |
1.62:1. ±1% |
|
TURNS RATI0 |
(3-4):(12-13) |
1.08:1,±1% |
|
TURNS RATI0 |
(13-14):(3-4) |
1.62:1,±1% |
Shape and Dimensions:

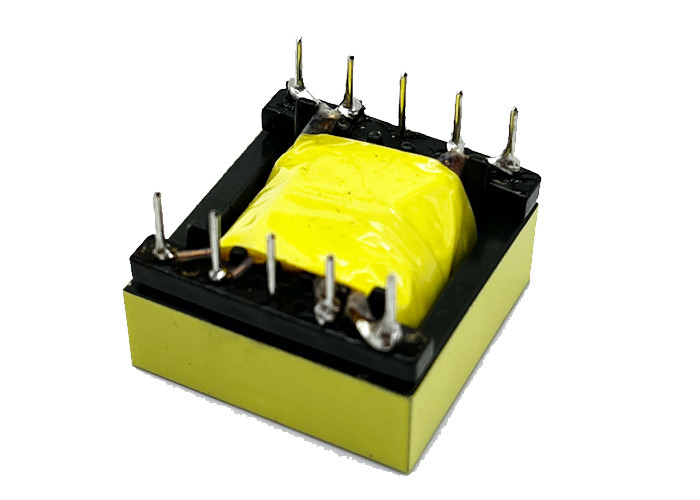

Product picture:
THT IBTI Isolated Buck Transformers For Building automation 750314624
