10GBASE-T Single Port Configuration PoE RJ45 Connector G27-122T-015

10GBASE-T Single port configuration PoE RJ45 Connector G27-122T-015

Features & Benefits
• 10GBASE-T capable design
• Single port configuration
• Industry standard footprints & pinouts
• Can be used as PSE or PD
• Compatible with all major 10GBASE-T PHYs per the table below
• Backward compatible to existing Ethernet networks
• Comply with the requirements of NBASE-T and IEEE 802.3bz


Applications
• 5G cellular equipment and base stations
• NBASE-T complaint products
• Higher bandwidth wireless access points
• High power sourcing applications like low density 10GBASE-T Ethernet
switches requiring up to 60W of 48V power
• High powered devices like Ethernet cameras that require more than 30W
of power

Specifications
• Meets all IEEE 802.3 10/100BASE-T thru 10GBASE-T
electrical requirements including RL, IL, hi-pot and
common mode parameters
• Operates from -40°C to 85°C
• 100% hi-pot tested in production
• Different LED color combinations and options available
• 50 micro-inches of gold-plated contacts as required by
the TIA 1096/FCC 47, Part 68

• RJ45 plug-tab up for ease of use
• Lead-free wave-solder compatible
• EMI-spring tabs on the shield for enhanced EMI and
ESD performance
• UL recognized
• RoHS 6/6 compliant

Electrical Properties:

10GBASE-T Single port configuration PoE RJ45 Connector G27-122T-015

Shape and Dimensions:

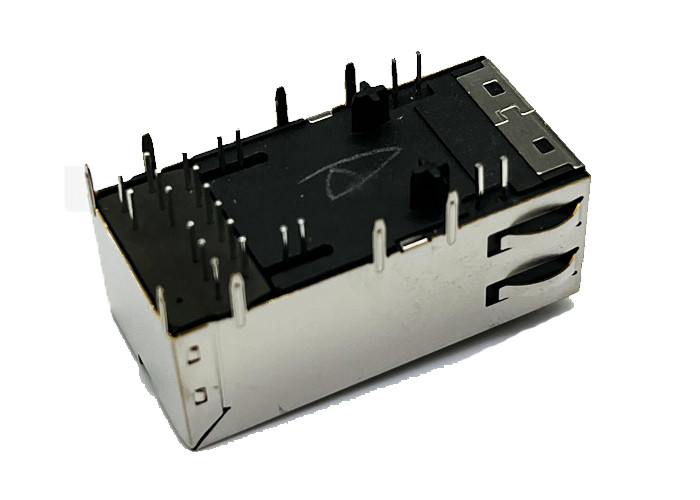

Product picture:

10GBASE-T Single port configuration PoE RJ45 Connector G27-122T-015
