Model Number: HM2112ZNL
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.30 to USD$0.85
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
HM2112ZNL |
Speed: |
10/100/1000M Base-T |
Hi-pot: |
4.3k VAC |
Port: |
Dual Port |
Soldering Type: |
SMD |
Design Construction: |
Functional Insulation |
Shipping Method: |
DHL, Fedex, UPS, TNT |
Sample: |
Free Sample Supported |
Cross P/n: |
HM2112ZNL |
Speed: |
10/100/1000M Base-T |
Hi-pot: |
4.3k VAC |
Port: |
Dual Port |
Soldering Type: |
SMD |
Design Construction: |
Functional Insulation |
Shipping Method: |
DHL, Fedex, UPS, TNT |
Sample: |
Free Sample Supported |
Shareway Dual port SMT CMC 4.3k VAC SMT Lan transformer cross to HM2121ZNL with Competitive price
Electrical Characteristics at +25℃:
| Parameter | Specifications |
| Qualification | Per AEC-Q200 |
| Design Construction | Functional Insulation |
| Creepage distance | ＞ 10mm |
| Operating Temperature | -40 ℃ to 125℃ |
| Turns ratio | 1.00 ± 2% |
| DC Resistance | Reansformer side: 0.45 Ohms max |
| CM Choke side: 0.85 Ohms max | |
|
Inductance(OCL) @ 100kHz, 100mV(-40℃ to +125℃) |
150uH Min, 450 uH Max |
| Leakage Inductance | 0.50 uH Max, @100kHz |
| Insertion Loss | 0.25 dB Max @ 4 MHz |
|
Return Loss (Z OUT = 100 OHM ±1%) |
20 dB MIN @ 4 MHz |
| Crosstalk, ADJACENT Channels | -50 dB MIN @ 4 MHz |
| Common mode rejection ratio | 1 -10 MHz: -35 dB MIN |
| 10-1000 MHz: -20 dB MIN | |
| INPUT - OUTPUT Isolation |
4300VDC or 3100 VAC For 60 Seconds with 1.0 mA Max of Leakage current |
| Insulation resistance | 400 Megaohms min |
| Working voltage | 1000 VDC For 15 years |
Mechanical Diagram:

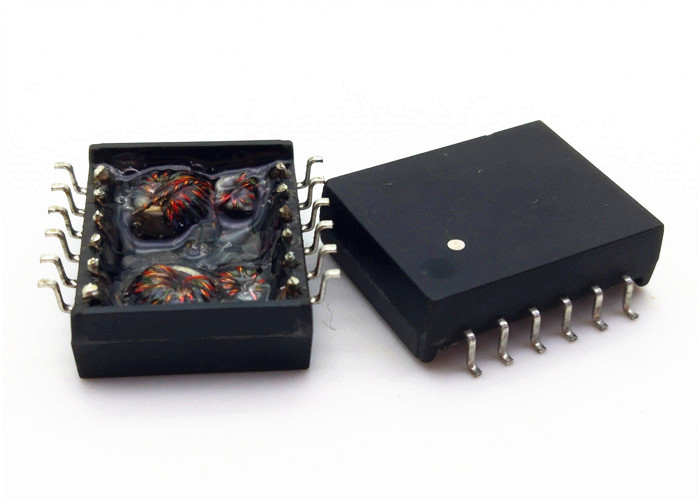

Product Photo:
