Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: TGR04-6506V6LF
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.20 to USD$0.95
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
TGR04-6506V6LF |
Speed: |
10/100/1000M Base-T |
Hi-pot: |
2.5k VAC |
Port: |
Single Port |
Soldering Type: |
SMD |
Design Construction: |
Functional Insulation |
Shipping Method: |
DHL, Fedex, UPS, TNT |
Sample: |
Free Sample Supported |
Cross P/n: |
TGR04-6506V6LF |
Speed: |
10/100/1000M Base-T |
Hi-pot: |
2.5k VAC |
Port: |
Single Port |
Soldering Type: |
SMD |
Design Construction: |
Functional Insulation |
Shipping Method: |
DHL, Fedex, UPS, TNT |
Sample: |
Free Sample Supported |
Shareway SMD Isolation LAN Transformer compatible TO automotive VERSION part TGR04-6506V6LF
ELECTRICAL SPECIFICATIONS @25°C:
| TURNS RATIO | |
| P1-3:P6-4 | 1CT: 1CT ±2% |
| OCL P1-3(-40/+125°C) | 150pH min |
| DCR P1-3 | 0.8Ω max |
| Cw/w | 25pF max |
| LL P1-3 | 0.6uH max |
| ISOLATION | 3,000Vrms |
echanical Diagram:

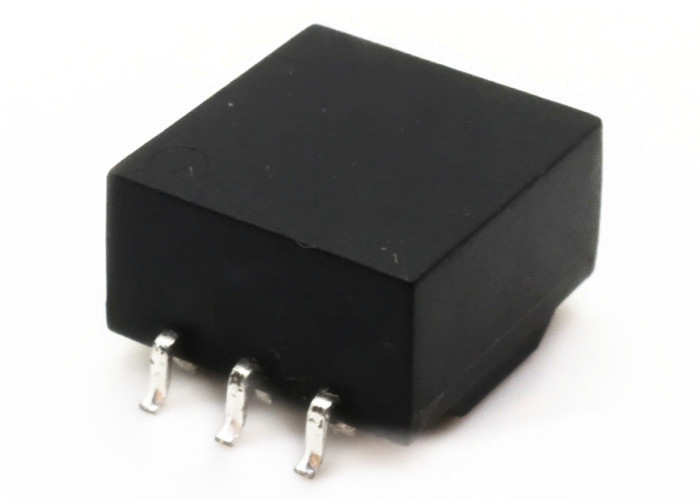

Product Photo:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 1-4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
Please contact sales03@shareway-tech.com freely for any further information.
