475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S

Description of the 475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S:


1. PAD002-T764111S = ST46411ANL is designed to converter 3.3V to 5V, typical application is DC/DC Converter.  With outputs sanning an industrial standard 3.3V to 10V range, maximum outupt current can reach to 250mA.

2. Suitable for DC-DC and other power applications, suitable for SN650X , MAX253, MAX845, ADM2485 and other popular transformer drivers.

3. 3100 Vrms 60 Seconds Isolation between windings in a miniature surface mount package.

4. Each transformer has a plastic housing cover or stainless steel cover, which can provide an excellent surface for automated placement.

5. Minimum Vs rating of 11Vus,  creepage & clearance distance of 8mm minimum between primary and secondary.

​

Applications of the 475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S:

• Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN Communication
• Industrial automation
• Process control
• Medical equipment
• PLC analog and digital I/O modules
• Isolated gate driver power supplies
• AC motor drives
• Uninterruptible power supplies (UPS)
• Solar inverters
• Polyphase energy meters
• Smart Metering
• Communication PHYs
• System integration
• Forward, Push-Pull Converters For DC/DC Converters SMPS Transformer 3100Vrms Isolation - Surface Mount


Specification of the 475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S:

1. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc
2. Leakage inductance measured at 100 kHz, 0.1 Vrms with secondary pins shorted.
3. SRF measured with coils connected in series using an Agilent/HP 4192 or equivalent.
4. Operating temperature range −40°C to +125°C.
5. Electrical specifications at 25°C.

760390013  760390015
750313769  750313626
750316028  750316029
750316031  750316032
750316855  750316887
750316853  750317072
750315371  750316030
750316033  760390012
760390014  750313734
750313638  750315240
750342879  750343341
750316016  750316017
750316018  750316668
750316669  750316670
750316671  750316019
750316854  750316856
750316886  750316888
750316819  750316818
750316769  750316770
750343725  750317829
750317830  750342312
750343547  750343548
750317331  750317828

Shape and Dimensions of the 475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S:

The Schematic of the 475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S:

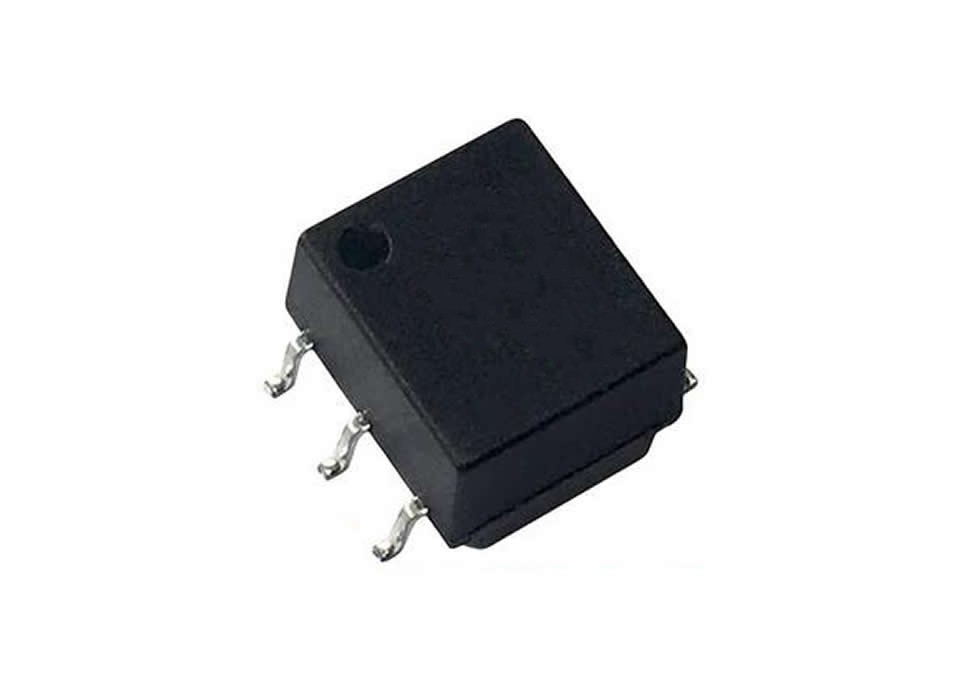

Product Picture of the 475uH PCB Transformer Isolation 2W for Serial Communications PAD002-T764111S :
