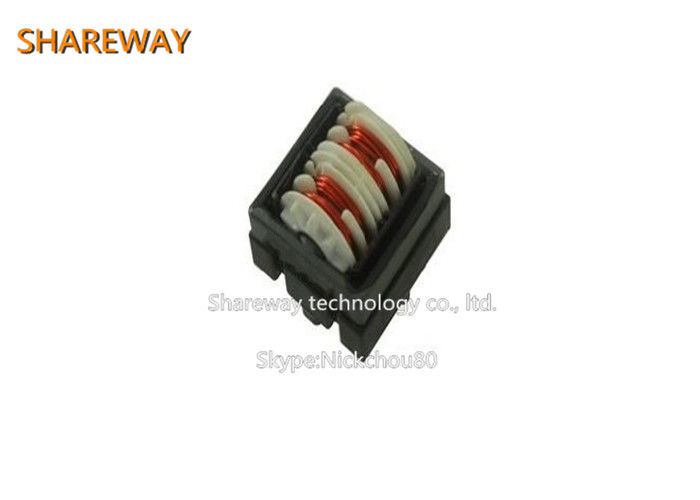

Common Mode Choke Transformer 27*21.1*16.6mm Customized Inductance


Large Image :  Common Mode Choke Transformer 27*21.1*16.6mm Customized Inductance

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Common Mode Power Line Choke Power Over Ethernet Transformer Size: 27mm*21.1mm*16.6mm
Rated Capacity: More Than 88% Rated Voltage: Customization
Material: Copper Wires, Magnetic Core, Skeleton, Skeleton Inductance: Support Custom
High Light:

ethernet isolation transformer


8 pin transformer

Mode Power Line Choke Power Over Ethernet Transformer Common

D Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance 10 kHz/ 100 mV L 2x 33 mH min
Rated current @ 70°C IR 0.3 A max
DC Resistance @ 20°C RDC 2x 2.50 Ω ±15%
Rated voltage 50 Hz UR 250 V(AC) max
Insulation test voltage 50 Hz/ 5 mA/ 2 sec. UT 2000 V(AC)


E General information:

It is recommended that the temperature of the part does not exceed

+125°C under worst case conditions.

  • Storage Temperature: -20°C to 60°C
  • Operating Temperature: -40°C to 125°C
  • Temperature Rise: < 55K
  • Test conditions of Electrical Properties: 20°C, 33% RHMif not specified differentl


Mode Power Line Choke Power Over Ethernet Transformer Common

1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
