Horizontal Switch Mode Transformer SMD 12 Pin Transformer

large.img.alt
small.img.alt small.img.alt

Large Image :  Horizontal Switch Mode Transformer SMD 12 Pin Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Usage: High Frequency Coil Number: Autotransformer, Autotransformer
Material: Mn-Zn Color: Silver,yellow,black,grey...
Product Name: SMD 6+6 Pins Horizontal Switch Mode Transformer Application: Horizontal Switch
High Light:

6 pin transformer

,

small isolation transformer

SMD 6+6 Pins Horizontal Switch Mode Transformer


Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance Base 100 kHz/ 100 mV LBASE 14.7 μH ±20%
Turns Ratio   n 1:1:1:1:1:1
Voltage-μSecond Base   ∫Udt Base 49.3 μVs max.
Rated Current Base ΔT = 40 K IR BASE 0.5 A typ.
Saturation Current Base |ΔL/L| < 10 % ISAT BASE 0.55 A typ.
DC Resistance Base @ 20 °C RDC BASE 344 max.
Leakage Inductance
Base
100 kHz/ 100 mV LS BASE 0.3 μH typ.
Insulation Test Voltage N1,2,3 => N4,5,6 UT 1 1500 V (AC)
Insulation Test Voltage N1 => N2,3; N2 => N3 UT 2 1000 V (AC)
Insulation Test Voltage N4 => N5,6; N5 => N6 UT 3 1000 V (AC)




General Information:

It is recommended that the temperature of the component does not exceed +125°C under worst
case conditions

  • Operating Temperature :-40 °C up to +125 °C
  • Storage Temperature (in original packaging) :-40 °C up to +85 °C
  • Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently

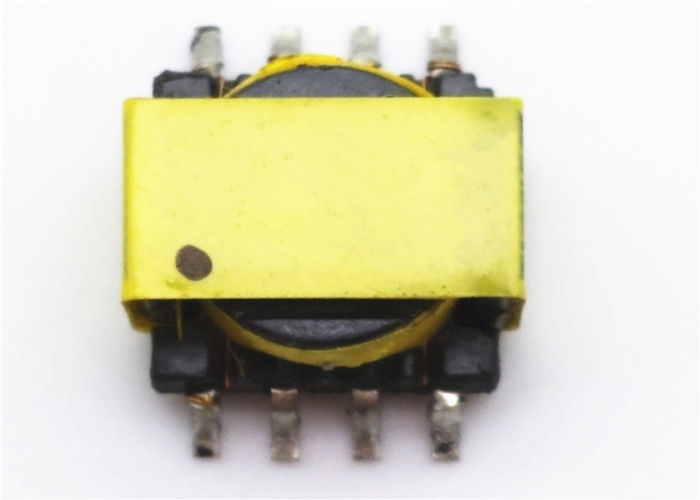

Product Picture:

Horizontal Switch Mode Transformer SMD 12 Pin Transformer 0





SMD 6+6 Pins Horizontal Switch Mode Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
