PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers

PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers
PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers

Large Image :  PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: ST0532NL = PLC-002

Payment & Shipping Terms:

Minimum Order Quantity: 50/100/500/1000
Price: Supportive
Packaging Details: Tape& Reel and Tube Optional
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal, Western Union
Supply Ability: 300K.PCS/Month
Detailed Product Description
Product Name: PLC-002 1:1 15uH PLC Transformers For Automotive EV/ PHV AC/DC Onboard Battery Chargers Mounting: SMD
Application: Telecommunication Material: UL 94 V-0 Package Materials
Pin: 4+4 Pins Operation: PLC Signal Transmission
High Light:

Automotive power line communication transformer

,

15uH plc transformer

,

UL 94 V-0 plc transformer

PLC-002 1:1 15uH PLC Transformers for Automotive EV/ PHV AC/DC onboard battery chargers


DESCRIPTION:
The ST0532NL = PLC-002 is a 1:1  15uH PLC trafo that is suitable for Automotive EV/ PHV AC/DC onboard battery charges applications.



It has 4+4, total 8 pins, with SMD surface mount legs, easily for machine pick and place and soldering.

Key FEATURES of ST0532NL = PLC-002 PLC transformer:

  • RoHS compliant
  • UL 94 V-0 package materials
  • Low profile
  • Toroidal construction
  • Signal transformer for HPGP (HomePlug Green PHY) PLC modems
  • For power line communication devices acc. to IEC 15118 standard
  • For charging systems according to IEC 61851-1
  • PTH technology
  • Wide operation temperature range from -40℃ to +125 ℃
Trader Part Number Turns
Ratio

Min.
Primary

Inductance

Primary Min.
Volt-time
Product, Et
Typ.
Leakage
Inductance
Typ.
Interwinding
Capacitance
Max.
DC
Resistance
Isolation
Voltage
μH Vμs μH pF Vrms
ST0532NL = PLC-002 1:1 10 Min, 15 Typ 4 0.25 Max 2 M 60 Max 500



The Dimension of the ST0532NL = PLC-002 is a 1:1 15uH PLC trafo that is suitable for Automotive EV/ PHV AC/DC onboard battery charges application.




Shape and Dimensions:


PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers 0

 PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers 1

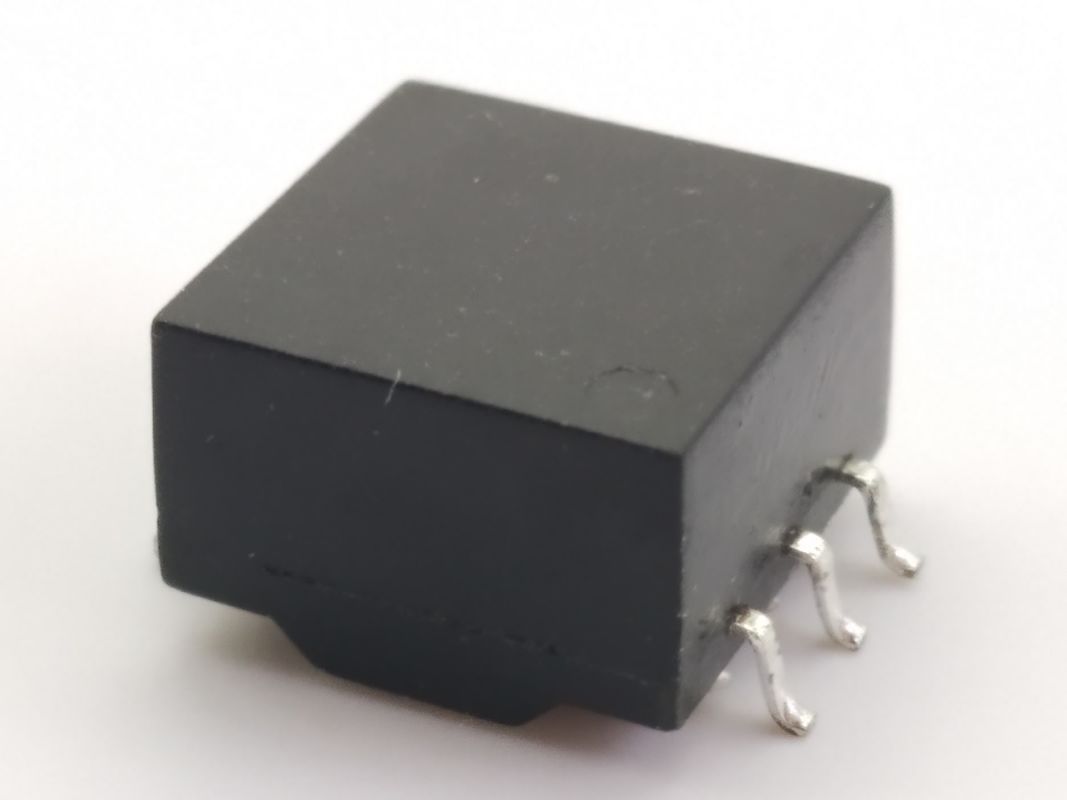

Product Picture:


 PLC-002 1/1 15uH PLC Transformers For Automotive EV / PHV AC/DC Onboard Battery Chargers 2
