SMT Common Mode Chokes for power line applications CF3094-AL / CR7915-AL
SMT Common Mode Chokes for power line applications CF3094-AL / CR7915-AL
Characteristics:
- Low profile toroid construction
- Surface mount, magnetically shielded package
- Up to 7.95 kOhms impedance at 2.8 MHz
- 1000 Vrms isolation (hipot) between windings
• Solutions for use in a wide array of power line circuits
• Ideal for use in consumer electronics and industrial applications
• Suppression of high frequency common mode noise up to 100 MHz
• Excellent current ratings – up to 10 A
• Isolation (hipot) up to 1500 Vrms
• Surface mount toroids
• Upon request, additional values may be available for particular applications
Electrical Properties:
| Part number |
Common mode peak impedance (kOhms) |
Inductance (mH) nom |
Inductance (mH) min |
Irms (A) |
DCR max (mOhms) |
Isolation (Vrms) |
Length max (mm) |
Width max (mm) |
Height max (mm) |
| CE1755-AL |
3.32 @ 5.1 MHz |
0.88 |
0.57 |
1.2 |
130 |
1000 |
13.00 |
13.00 |
5.46 |
| CR7915-AL |
3.10 @ 4.9 MHz |
1.12 |
0.73 |
2.6 |
49.5 |
1500 |
13.00 |
13.00 |
5.60 |
| CF3094-AL |
7.93 @ 2.5 MHz |
1.17 |
0.76 |
1.1 |
200 |
1000 |
13.00 |
13.00 |
5.46 |
| CM6518-AL |
4.17 @ 1.9 MHz |
1.40 |
0.91 |
2.5 |
60.0 |
1500 |
16.38 |
14.22 |
8.90 |
| CJ5094-CL |
28.28 @ 0.26 MHz |
10.0 |
6.5 |
1.2 |
180 |
1000 |
16.38 |
14.22 |
8.90 |
| CV9172-AL |
70.01 @ 0.21 MHz |
22.0 |
14.3 |
0.57 |
850 |
1000 |
16.38 |
14.22 |
8.90 |
| CF2638L |
2.59 @ 4.3 MHz |
0.22 |
0.14 |
2.9 |
60.0 |
1000 |
19.56 |
17.02 |
9.91 |
| CD1479-AL |
4.19 @ 3.0 MHz |
0.59 |
0.38 |
4.2 |
20.0 |
1000 |
19.56 |
17.02 |
9.91 |
| CH4659-AL |
4.56 @ 2.5 MHz |
0.77 |
0.50 |
4.7 |
40.0 |
1000 |
19.56 |
17.02 |
9.91 |
| CD1480-BL |
4.53 @ 2.2 MHz |
1.32 |
0.85 |
3.5 |
60.0 |
1000 |
19.56 |
17.02 |
9.91 |
| CE2439L |
9.42 @ 1.1 MHz |
1.47 |
0.96 |
2.5 |
80.0 |
1000 |
19.56 |
17.02 |
9.91 |
| CG3333-AL |
2.27 @ 2.9 MHz |
0.90 |
0.59 |
3.7 |
50.0 |
1000 |
19.56 |
17.02 |
9.90 |
| CG3528-AL |
6.23 @ 0.72 MHz |
3.00 |
1.95 |
3.1 |
42.0 |
1000 |
19.56 |
17.02 |
9.91 |
| CE1759-AL |
4.82 @ 0.99 MHz |
0.81 |
0.52 |
6.0 |
14.0 |
1000 |
31.0 |
26.0 |
13.0 |
| CG3885-AL |
3.11 @ 1.8 MHz |
0.47 |
0.30 |
10.0 |
8.0 |
1000 |
31.0 |
26.0 |
12.7 |
| CF2805-AL |
3.64 @ 1.9 MHz |
0.63 |
0.40 |
6.8 |
14.0 |
1000 |
31.0 |
26.0 |
12.7 |

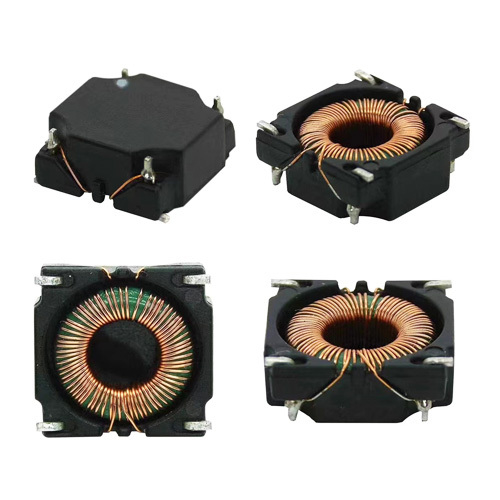

Product picture:
