Inverter Usage Ferrite Electrical Power Transformer EFD-363SG 29.321.8512.0mm Size

Name: Inverter Usage Ferrite Electrical Power Transformer EFD-363SG 29.3*21.85*12.0mm Size
Brand: Shareway
SKU: EFD-363SG
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (129 reviews)

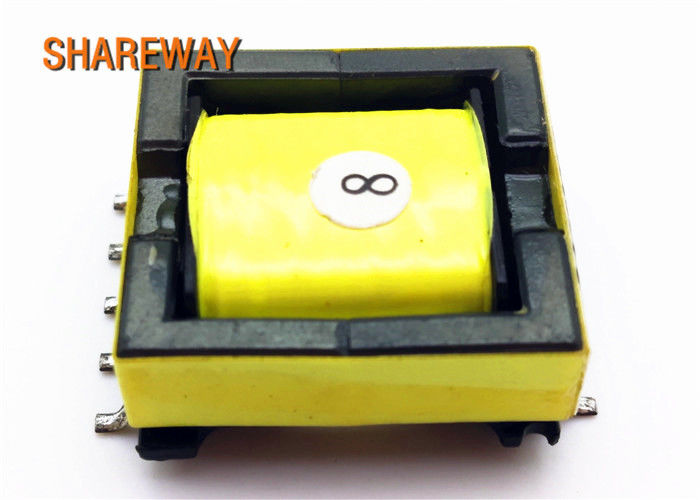

Large Image : Inverter Usage Ferrite Electrical Power Transformer EFD-363SG 29.3*21.85*12.0mm Size

Product Details:

Place of Origin:	Guangdong,shenzhen
Brand Name:	Shareway
Certification:	RoHS,ISO9001-2001
Model Number:	EFD-363SG

Payment & Shipping Terms:

Minimum Order Quantity:	500/1000
Price:	Supportive
Packaging Details:	Reel/Tray
Delivery Time:	Stock Or 3 weeks
Payment Terms:	TT,Paypal,West Union
Supply Ability:	1kk-pcs/month

Contact Now

Detailed Product Description

Product Name:	29.321.8512.0mm EFD Ferrite Flyback Smps Transformer EFD-363SG	Usage:	Inverter
Material:	Ferrite	Power:	25w
Series:	EFD	Size:	29.321.8512.0mm
High Light:	ferrite core transformer , high frequency transformer

29.3*21.85*12.0mm EFD Ferrite Flyback Smps Transformer EFD-363SG

Description:

Part number: EFD-363SG

Brand: Shareway

Power: 25.0

Vinput (DC): 33-57V

Output: 12V,2.08A

Aux/Bias: 11.2V,20mA

Drive: 6.0V,10mA

Application freq (KHz): 250

Pri Inductance (uH)±10%: 75

Leakage Inductance (uH MAX): 1.0

Hi-pot (Vrms) Pri-Sec : 1500

Size W*L*H(mm): 29.3*21.85*12.0

RoHS Compliant

Surface Mount Device.

Operating temperature range (Including self temperature rise): -40 ℃ to +125℃.

Picture:

Tag:

Contact Person: Nick

Tel: +8613509648960
