760390013 MID PPTI SMPS Flyback Transformer Push Pull 250VAC Small Flyback Transformer

760390013 MID PPTI SMPS Flyback Transformer Push Pull 250VAC Small Flyback Transformer
760390013 MID PPTI SMPS Flyback Transformer Push Pull 250VAC Small Flyback Transformer

Large Image :  760390013 MID PPTI SMPS Flyback Transformer Push Pull 250VAC Small Flyback Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 760390013

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel ,Tube
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: 760390013 MID-PPTI Push-Pull Transformers SMPS Flyback Transformer Type: Push-Pull Transformers
Size: Small Size Application: Industrial Automation
Color: Black Current Rating: 150mAAC
Highlight:

250VAC Small Flyback Transformer

,

Push Pull SMPS Flyback Transformer

,

MID PPTI SMPS Flyback Transformer

MID-PPTI Push-Pull Transformers SMPS Flyback Transformer 760390013


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE              1-3 @20°C 0.419 ohms max
D.C RESISTANCE              6-4 @20°C 0.335 ohms max
INDUCTANCE                    1-3 100KHz, 100mVAC,Ls 340uH min
DIELECTRIC                      1-6 6250Vrms, 1 second 5000Vrms,1 minute
TURNS RATIO (6-4):(1-3) 1.1:1,±2%





GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C including temp rise.
  • CURRENT RATING: 150mAAC
  • VOLTAGE- TIME: 11VuS
  • Complies with the following requirements as defined by IEC60601-1(ed):aml: -Providing two means of Patient Protection up to a working voltage of 250VAC.
  • 8mm minimum creepage & clearance distance between PRI & SEC.
  • Complies with the following requirements as defined by IEC60950-1, EN60950-1, UL60950-1/ CSA-60950-1, and AS/NZS60950-1:                                                                                        -Reinforced insulation for a primary circuit at a working voltage of 250VAC,
  • Designed to comply with the following requirements as defined by IEC60664-1: -Reinforced insulation for a primary circuit at a working voltage of 400VAC up to 2Km above sea level.

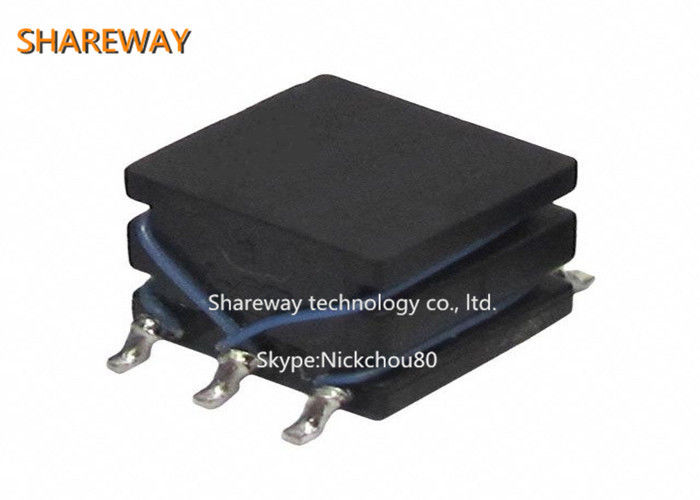

Product Picture:

760390013 MID PPTI SMPS Flyback Transformer Push Pull 250VAC Small Flyback Transformer 0





MID-PPTI Push-Pull Transformers SMPS Flyback Transformer


HOW TO ORDER
1. Please send me the datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
