Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 1000K.PCS/Month
Product Name: |
Switch Mode Transformer For Switching Power Electric Transformer |
Usage: |
Switching Power |
Phase: |
Single |
Coil Structure: |
Toroidal |
Type: |
SMPS Flyback Transformer |
Material: |
Ferrite Core |
Sample: |
5pcs Free Samples |
Product Name: |
Switch Mode Transformer For Switching Power Electric Transformer |
Usage: |
Switching Power |
Phase: |
Single |
Coil Structure: |
Toroidal |
Type: |
SMPS Flyback Transformer |
Material: |
Ferrite Core |
Sample: |
5pcs Free Samples |

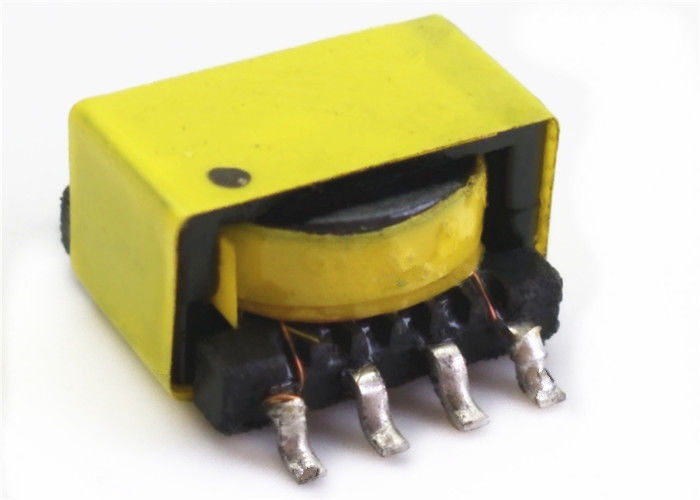

Switch Mode Transformer for Switching Power Electric Transformer
Transformer Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance Base | 100 kHz/ 100 mV | LBASE | 224.6 | μH | ±35% |
|
Turns Ratio |
n | 1:1:1:1:1:1 | |||
| Voltage-μSecond Base | ∫Udt Base | 49.3 | μVs | max. | |
| Rated Current Base | ΔT = 40 K | IR BASE | 0.5 | A | typ. |
| Saturation Current Base | |ΔL/L| < 10 % | ISAT BASE | 0.04 | A | typ. |
| DC Resistance Base | @ 20 °C | RDC BASE | 344 | mΩ | max. |
| Leakage Inductance Base |
100 kHz/ 100 mV | LS BASE | 0.3 | μH | typ. |
| Insulation Test Voltage | N1,2,3 => N4,5,6 | UT 1 | 1500 | V (AC) | |
| Insulation Test Voltage | N1 => N2,3; N2 => N3 | UT 2 | 1000 | V (AC) | |
| Insulation Test Voltage | N4 => N5,6; N5 => N6 | UT 3 | 1000 | V (AC) |
General Information:
It is recommended that the temperature of the component does not exceed +125°C under worst
case conditions
Switch Mode Transformer for Switching Power Electric Transformer
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
