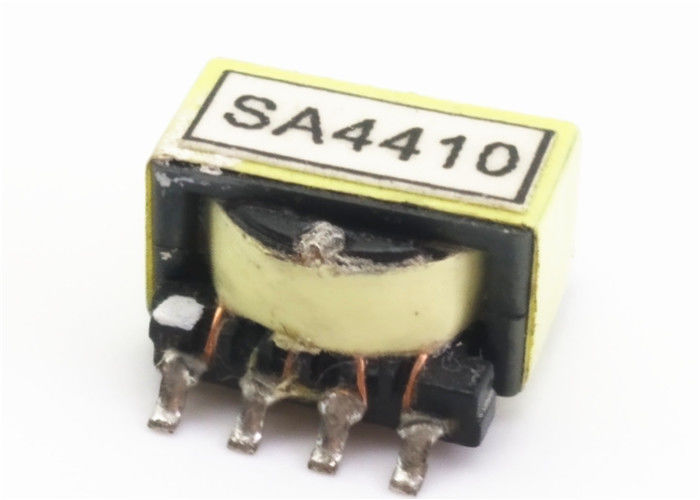

Single Phase Audio Amplifier Transformer CE ROHS Approved

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 1000K.PCS/Month

Get Best Price
Highlight:

6 pin transformer

,

small isolation transformer

Product Name:
Power Transformer Switch Mode Transformer For Audio Amplifier
Type:
SMPS Flyback Transformer
Usage:
Audio Amplifier
Phase:
Single
Part Number:
749196111
Sample:
Free Samples
Product Name:
Power Transformer Switch Mode Transformer For Audio Amplifier
Type:
SMPS Flyback Transformer
Usage:
Audio Amplifier
Phase:
Single
Part Number:
749196111
Sample:
Free Samples
Single Phase Audio Amplifier Transformer CE ROHS Approved

Power Transformer Switch Mode Transformer For Audio Amplifier


SMPS Flyback Transformer Electrical Properties:



Properties Test conditions   Value Unit Tol.
Inductance base 10 kHz/ 100 mV Lbase 27.4 μH ±20%
Turns ratio N1:N2:N3:N4:N5:N6 n 1:1:1:1:1:1
Rated Current base ΔT = 40K IR base 0.55 A typ.
Saturation Current base |ΔL/L| < 10% Isat base 0.22 A typ.
DC Resistance base   RDC base 344 max.
Voltage-μSecond base @ 20°C ∫Udt base 32.9 μVs max.
Leakage Inductance base 100 kHz/ 100 mV Ls base 0.21 μH typ.
Insulation test voltage 3 mA/1 s UT 500 V (AC)
  • 1) Inductance of a single winding
  • 2) Rated Current of a single winding
  • 3) Saturation Current of a single winding when all windings are driven. If not all windings are current driven the Saturation current per winding is6x Isatbase / number of driven windings
  • 4) DC Resistance of a single winding

It is recommended that the temperature of the part doesnot exceed +125°C under worst case conditions.

  • Storage Temperature: -40°C to +85°C
  • Operating Temperature: -40°C to +125°C
  • Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently
