Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB

Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB
Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB

Large Image :  Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel ,Tube
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 1000K.PCS/Month
Detailed Product Description
Product Name: 1000Base-T Ethernet Magnetic Transformers For Thru-Hole PCB Type: Insert Plate
Application: Ethernet Magnetic Transformers Mounting Type: SMD
Size: 17.27mm*14.73mm Pins: 16Pins, 24Pins, 40Pins, 48Pins, 50Pins, 72Pins
Port: Single, Dual, Quad Port
High Light:

1000base t transformer

,

gigabit ethernet transformer

1000Base-T Ethernet Magnetic Transformers For Thru-Hole PCB


Special Features:

1. RoHS COMPLIANT

2. PLASTIC : THERMOSET PLASTIC MATERIAL WITH FLAMMABILTY RATING UL 94V-0 OR BETTER.

3. SOLDERABILITY: CONFORMS TO ANSI/J-STD-002,IPC/EIA J-STD-003A.

4. OPERATING TEMPERATURE: 0℃ TO 70℃

5. STORAGE TEMPERATURE :-20 ℃ TO +125 ℃

6. JEDEC MOISTURE:LEVEL 1.

7. DIMENSIONS ARE IN INCHES WITH THE FOLLOWING TOLERANCES:

.XX = ±.0.1 .XXX = ±.005





ELECTRICAL CHARACTERISTICS AT +25℃ UNLESS OTHERWISE SPECIFIED

(FOR  REFERENCE ONLY, USED FOR CUSTOMER INFORMATION.)

1. OPERATING TEMP : 0℃ TO 70℃

2. TURNS RATIO : 1:1 ± 2%

3. POLARITY : PER SCHEMATIC

4. INSERTION LOSS:

        100KHz     -          1 - 25 MHz

      -1.2 dB MAX        -          -0.2 - 0.002*f 1.4  dB MAXIMUM

5. RETURN LOSS (Z OUT = 100   OHM ± 15% )

       . 1 - 40 MHz             40 - 100 MHz

          -16 dB MIN             -10+20 * LOG10 ( f/80 MHz ) dB MINIMUM

6. INDUCTANCE ( OCL ) (MEDIA  SIDE,0℃-70℃)

          350uH MIN (MEASURED AT 100KHz, 100 mVRMS AND WITH 8 mA DC BIAS)

7. CROSSTALK, ADJACENT CHANNELS

           1 MHz                 10 - 100 MHz

           -50 dB MIN          +55+22*LOG10 ( f/80 MHz ) dB MINIMUM

8. COMMON MODE REJECTION RATIO

             2 MHz             30 - 200 MHz

             -50dB MIN       -15 + 20*LOG10 ( f/80 MHz ) dB MINIMUM

9. DC RESISTANCE 1/2 WINDING

              .65 OHMS MAXIMUM

10. DC RESISTANCE IMBALANCE

              ±0.65 OHMS MAXIMUM ( CENTER TAP SYMMETRY )

11. INPUT - OUTPUT ISOLATION

                1500 VRMS MINIMUM AT 60 SECONDS





1000Base-T Ethernet Magnetic Transformers For Thru-Hole PCB


Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB 0

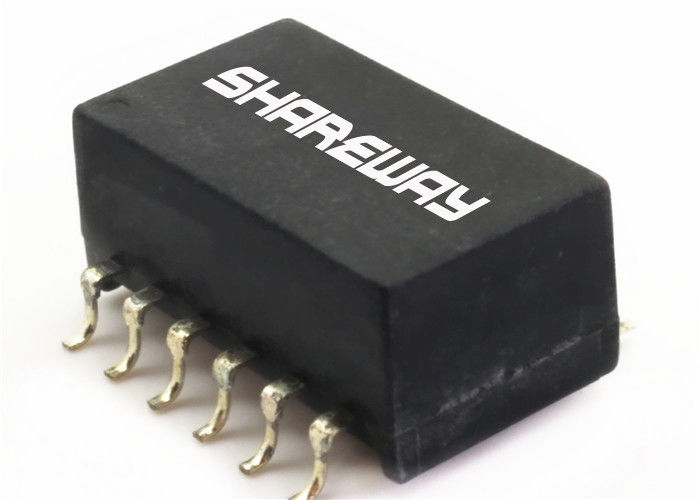

PRODUCT PICTURE


Ethernet Isolation Transformer 1000Base - T For Thru - Hole PCB 1





1000Base-T Ethernet Magnetic Transformers For Thru-Hole PCB


HOW TO ORDER



1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
