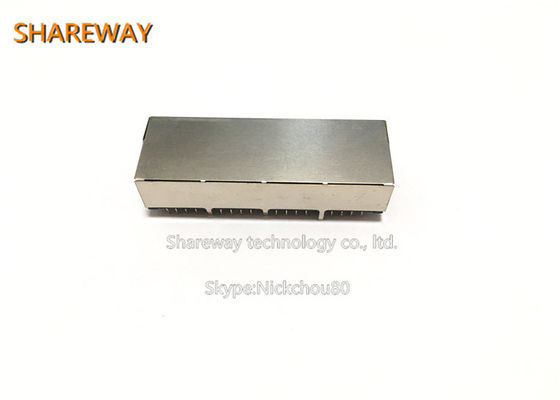

Product Name: J0N-0015NL PoE RJ45 Connector Shielded PCB Jack With UL Approved Use For: Switch
Speed: Gigabit /1000Base-T Pin: 14 Pins Every Port
Size: 58.24mm*30.48mm EMI Finger: Yes
Shielding Housing: Copper Alloy ,Tin And Nickel Plated
High Light:

shielded rj45 connectors

,

power over ethernet rj45 connector

J0N-0015NL PoE RJ45 Connector Shielded PCB jack With UL approved


J0N-0015NL DETAILS:

1. RoHS CERTIFICATION
2. PLASTIC HOUSING : THERMOPLASTIC MATERIAL WITH FLAMMABILITY RATING UL 94V-0 OR
BETTER.
3. CONTACTS PLATING: 50 MICROINCHES GOLD PLATING
4. CONTACT BASE MATERIAL: PHOSPHOR BRONZE
5. UNDER PLAATING : 30 - 50u INCHES NICKEL
6. SOLDER TAIL PLATING: 200 - 500 UINCHES 100% TIN, MATTE FINISH
7. METAL SHIELD: NICKEL PLATING ON COPPER ALLOY
8. JACK CAVITY CONFORMS TO FCC PART 68 SUBPART F.
9. PCB PLATING: HASL
10. STORAGE TEMPERATURE: - 20℃ TO +125℃
11. COMPLIANCE TO J - STD:
     A. J - STD -002: SOLDERABILITY AT 245℃ DIP AND LOOK TEST
     B. J - STD -020: LEVEL 1, NO MOISTURE SENSITIVE
     C. J - STD -075: W2, 270℃ MAXIMUM THROUGH WAVE SOLDER


ELECTRICAL CHARACTERISTICS AT 25℃ UNLESS OTHERWISE SPECIFIED
              MEETS IEEE 802.3 SPECIFICATION
PARAMETER SPECIFICATION
OPERATING TEMPERTURE 0℃ - 70℃
TURNS RATIO 1 .00 ± 2%
POLARITY PER SCHEMATIC
INSERTION LOSS 1 - 100 KHz
-1.2 dB MAX

RETURN LOSS

(Z OUT = 100 OHM ± 5%)

. 1-40 MHz 40 - 60 MHz 60 - 80 MHz
- 16 dB MIN - 14.4 dB MIN - 16 dB MIN

INDUCTANCE (OCL)

(MEDIA SIDE, 0℃ TO +70℃)

MX1,MX2 MX3,MX4
350 uH MIN @ 8mA DC 120 uH MIN @ 19mA DC

CROSSTALK,

ADJACENT CHANNELS

1-100 MHz
- 35 dB MIN

COMMON MODE

REJECTION RATIO

2 -100 MHz
- 30 dB MIN

DC RESISTANCE

1/2WINDING

.65 OHMS MAX

DC RESISTANCE

IMBALANCE

±.065 OHMS MAX ( CENTER TAP SYMMETRY )
DC CURRENT RATING 600 mA MAX

INPUT - OUTPUT

ISOLATION

2250 VDC FOR 60 SECONDS



PoE RJ45 Connector J0N-0015NL:

EMMITTED COLOR GREEN YELLOW
WAVELENGTH (nm) 570 nM 586 nM
BRIGTHNESS (mCD) 4 TYP @ 20mA 10 TYP @ 20mA
VIEWING ANGLE 150 150
POWER DISSIPATION 85 mW MAX 85 mW MAX

PEAK FORWARD CURRENT

( 10us PULSE)

120 MA MAX 80 MA MAX
FORWARD VOLTAGE(Vf) 2.2 TO 2.8 V 2.1 TO 2.8 V





J0N-0015NL PoE RJ45 Connector Shielded PCB jack With UL approved
