PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics

PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics
PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics

Large Image :  PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: JK0-0133NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 1000K.PCS/Month
Detailed Product Description

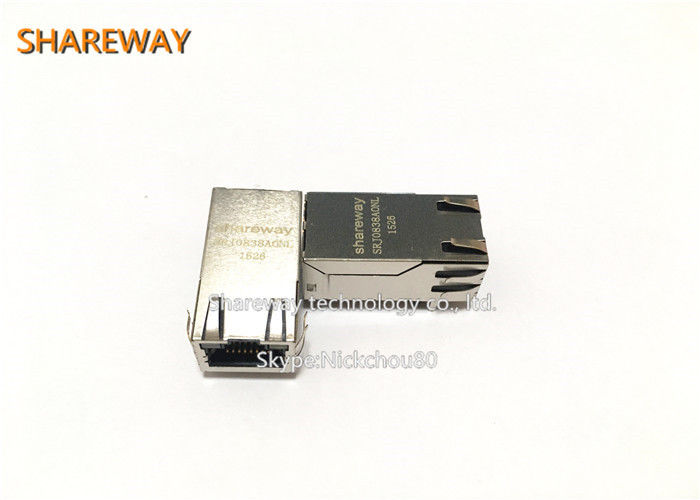

Product Name: JK0-0133NL Magnetic RJ45 Jack With Integrated Magnetics For PHY Use For: PHY
Type: Magnetic RJ45 Jack With Integrated Magnetics Pin: 14 Pins
PCB Termina: Phosphor Bronze Shield: Shielded / Unshielded
High Light:

10 pin rj45 jack

,

ethernet rj45 jack

JK0-0133NL Magnetic RJ45 Jack With Integrated Magnetics For PHY


Description:

10/100/1000 Base-TX RJ45 single port with integrated magnetics – Designed for most leading PHY
manufacturers with the addition of Power over Ethernet, according to IEEE 802.3af.



Features and Benefits:

RoHS peak wave solder temperature rating 260°C
Single port Connector for PoE applications



Electrical Performance Summary:

350μH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
15W, 350mA, 48V PoE rating





Similar product:

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

RoHS

Compliant

Part Number

Tab
Option

LEDs 1

L/R

Insertion
Loss TX/RX
(dB )
Return Loss
(dB TYP)
100Ω (± 15 Ω)
Crosstalk
(dB TYP)
Common Mode
Rejection
(dB TYP)
Hipot
(Vrms MIN)
1-100
MHz
30
MHz
60-80
MHz
100
MHz
30
MHz
60
MHz
100
MHz
1-50
MHz
50-130
MHz
@ 60Hz
1 MIN
JK0-0133NL UP -1.0 -16 -12 -10 -44 -37 -33 -27 -20 1500
JK0-0145NL UP G/Y -1.0 -16 -12 -10 -44 -37 -33 -27 -20 1500
JK0-0161NL UP -1.0 -16 -12 -10 -44 -37 -33 -27 -20 1500





RJ45 Durability Testing Rating
Part Number

Mating Force

(MAX)

Unmating Force

(MAX)

Durability

Plug to Jack

Retention (MIN)

JK0 Series 5 lbs./2.268 kgs. 5 lbs./2.268 kgs. 500 Insertions 20 lbs./9.072 kgs.





RJ45 Material Specification

Part

Number

Shield Contact Housing
Material Finish Material Plating Area Solder Area Material Specification

MSL

Rating

JK0

Series

Brass

20-40μ inches thick nickel

over brass

Phosphor

Bronze

15μ inches gold over

30-80μ inches nickel

75-300μ inches tin-lead over 75-300μ inches nickel Thermoplastic UL 94 V-0 1







JK0-0133NL Magnetic RJ45 Jack With Integrated Magnetics For PHY


PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics 0



PHY PoE RJ45 Ethernet Jack JK0-0133NL Single Port With Integrated Magnetics 1

JK0-0133NL Magnetic RJ45 Jack With Integrated Magnetics For PHY

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantities.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternatives for Halo, Pulse, We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer





Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).


  • Honeywell


Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.


  • Northbound Networks


Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
Northbound Networks is the OEM for this project.
