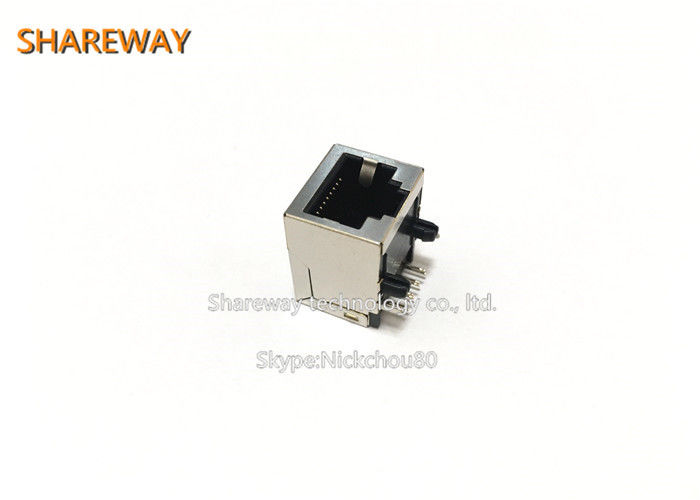

Networking Magnetic RJ45 Jack JKM-0008NL Gigabit Circuit W / Led'S Shielded

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: JKM-0008NL

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray in Carton

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 1000K.PCS/Month

Get Best Price
Highlight:

rj45 surface mount jack

,

ethernet rj45 jack

Product Name:
JKM-0008NL Magnetic RJ45 Jack Gigabit Circuit W/Led's Shielded
Speed:
Gigabit
Contact Finish ::
Gold
Family:
Magnetics Rj45
Magnetic:
No POE
Application:
Gigabyte Networking
Product Name:
JKM-0008NL Magnetic RJ45 Jack Gigabit Circuit W/Led's Shielded
Speed:
Gigabit
Contact Finish ::
Gold
Family:
Magnetics Rj45
Magnetic:
No POE
Application:
Gigabyte Networking
Networking Magnetic RJ45 Jack JKM-0008NL Gigabit Circuit W / Led'S Shielded

JKM-0008NL Magnetic RJ45 Jack Gigabit Circuit W/Led's Shielded


Product Description:
10/100 Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector, designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.

Features and Benefits:
RoHS peak wave solder temperature rating 260°C
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

Electrical Performance Summary:
Meets IEEE 802.3 specification
350μH minimum OCL with 8mA bias current
High performance for Max EMI suppression


Similar product:

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

RoHS

Compliant

Part Number

Data
Rate

LEDs 1
L/R

Insertion
Loss TX/RX
(dB )
Return Loss
(dB TYP)
100Ω (± 15 Ω)
Crosstalk
(dB TYP)
Common Mode
Rejection
(dB TYP)
Hipot
(Vrms MIN)
1-65
MHz
1-10
MHz
10-30
MHz
30-60
MHz
60-80
MHz
1-30
MHz
30-60
MHz
60-100
MHz
1-50
MHz

50-150
MHz

@ 60Hz
1 MIN
JKM-0008NL100BTG/Y-1.0-18-14-12-10-35-35-30-20-151500
JKM-0009NL100BTG/Y-1.0-18-14-12-10-35-35-30-20-151500
JKM-0010NL100BTNone-1.0-18-14-12-10-35-35-30-20-151500
JKM-0011NL100BTNone-1.0-18-14-12-10-35-35-30-20-151500




RJ45 Durability Testing Rating
Part Number

Mating Force

(MAX)

Unmating Force

(MAX)

Durability

Plug to Jack

Retention (MIN)

JKM Series5 lbs./2.268 kgs.5 lbs./2.268 kgs.750 Insertions20 lbs./9.072 kgs.




RJ45 Material Specification

Part

Number

ShieldContactHousing
MaterialFinishMaterialPlating AreaSolder AreaMaterialSpecification

MSL

Rating

JKM

Series

Brass

20-40m inches Nickel over
10-20m inches Brass

Phosphor

Bronze

Nickel underplating and selective gold plating 15μ inches

Tin matte finish

ThermoplasticUL 94 V-01
