SMD Data Line EMI Filter Inductor SMTB Series 8mm Length UL Approved

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: SMTB Series

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 350PCS/Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

common mode toroidal chokes

,

surface mount choke

Product Name:
SMTB Series Common Mode Choke SMD Data Line EMI Filter With UL Approved
Type:
SMD Data Line EMI Filter
Use For:
Telecommunication Devices
Nature Of The Copper Wire:
Copper Enamelled Wire
Length:
8mm
Main Function:
Through DC, AC Resistance
Product Name:
SMTB Series Common Mode Choke SMD Data Line EMI Filter With UL Approved
Type:
SMD Data Line EMI Filter
Use For:
Telecommunication Devices
Nature Of The Copper Wire:
Copper Enamelled Wire
Length:
8mm
Main Function:
Through DC, AC Resistance
SMD Data Line EMI Filter Inductor SMTB Series 8mm Length UL Approved

SMTB Series Common Mode Choke SMD Data Line EMI Filter With UL Approved


product description:

SMTB Series surface mount filters are specially designed to virtually eliminate the problems of conducted EMI in data line applications. They provide both differential and common mode noise attenuation. These components contain tremendous electrode straight, solder heat resistance and outstanding solderability. These products are designed for flow, reflow and wave soldering required for surface mounting applications.


Features:
1. RoHS Compliant
2. Compatible with auto insertion equipment and easy installed for PC board
3. Four lines for voice and data line
4. Compact and high performance


Applications:

1. Attenuating noise of analog and digital signals for telecommunication devices
2. Prevention of interference from amateur radios, CB stations, or high frequency welders, etc.

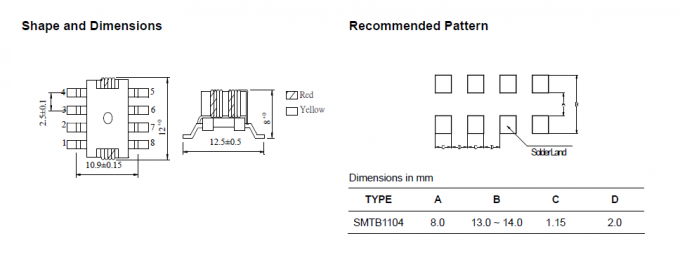

Shape and Dimensio:

SMD Data Line EMI Filter Inductor SMTB Series 8mm Length UL Approved 0



Packaging Specifications:

SMD Data Line EMI Filter Inductor SMTB Series 8mm Length UL Approved 1



Electrical Characteristics:

Part Number Test Frequency
(KHz) 0.6V
Inductance
L(μH)
DC Resistance
(Ω) Max
SMTB1104RIT-330-B3-N 100 25~50 0.07





Product picture:SMD Data Line EMI Filter Inductor SMTB Series 8mm Length UL Approved 2





SMTB Series Common Mode Choke SMD Data Line EMI Filter With UL Approved


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
