Electrical Gate Drive Transformer Single Phase For Switching Power

Electrical Gate Drive Transformer Single Phase For Switching Power
Electrical Gate Drive Transformer Single Phase For Switching Power Electrical Gate Drive Transformer Single Phase For Switching Power

Large Image :  Electrical Gate Drive Transformer Single Phase For Switching Power

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Switching Power Single Phase Electrical Gate Drive Transformer Phase: Single
Efficiency: 98% Surface: SMD
Pin: 3+3 Pins Report: SGS ROHS REACH
High Light:

toroidal isolation transformer

,

magnetic core transformer

 Switching Power Single Phase Electrical Gate Drive Transformer


D Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance 10 kHz/ 100 mV L 330 μH min.
Leakage inductance 100 kHz/ 100 mV LS 1.9 μH max.
DC Resistance 1   RDC 620 max.
DC Resistance 2   RDC 270 max.
DC Resistance 3   RDC 270 max.
Turns ratio   n 2:1:1
Voltage-μSecond B = 280 mT ∫Udt 28.6 μVs typ.
Interwinding capacitance 100 kHz/ 100 mV CWW 7 pF typ.
Rated voltage   UR 80 V (DC)
Insulation test voltage   UT 1500 V (DC)





E General information:

It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

  • Storage Temperature: -20°C to 60°C
  • Operating Temperature: -40°C to 125°C
  • Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently



Product Picture:

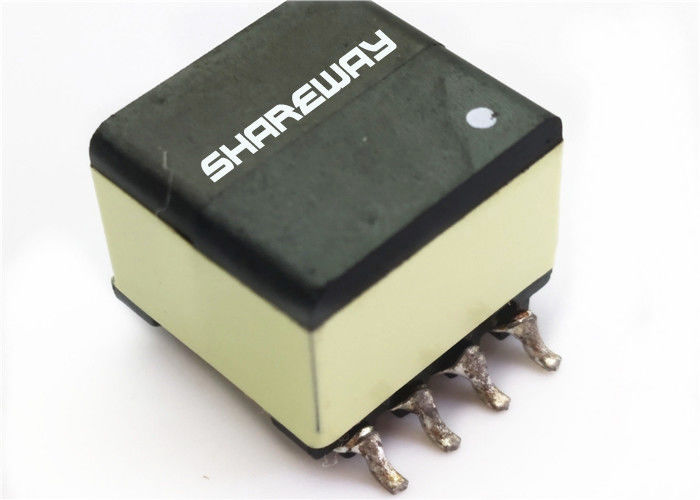

Electrical Gate Drive Transformer Single Phase For Switching Power 0





Switching Power Single Phase Electrical Gate Drive Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
