Detailed Product Description
Product Name: Power Lighting Gate Drive Transformer For Power Driver Use For: Power Driver
Coil Number: Gate Drive Transformer Material: Copper Wire , Magnetic Core, Bobbin
Item: Transformer Product Shape: As Spec
High Light:

smd audio transformer

,

magnetic core transformer

Power Lighting Gate Drive Transformer For power driver


D Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance 10 kHz/ 100 mV L 750 μH min.
Leakage inductance 100 kHz/ 100 mV LS 4.0 μH max.
DC Resistance 1   RDC 1100 max.
DC Resistance 2   RDC 1300 max.
Turns ratio   n 1:1
Voltage-μSecond B = 280 mT ∫Udt 102 μVs typ.
Interwinding capacitance 100 kHz/ 100 mV CWW 11.0 pF typ.
Rated voltage   UR 80 V (DC)
Insulation test voltage W1 => W2,3 UT 2500 V (DC)



E General information:

It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

  • Storage Temperature: -20°C to 60°C
  • Operating Temperature: -40°C to 125°C
  • Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently



Product Picture:

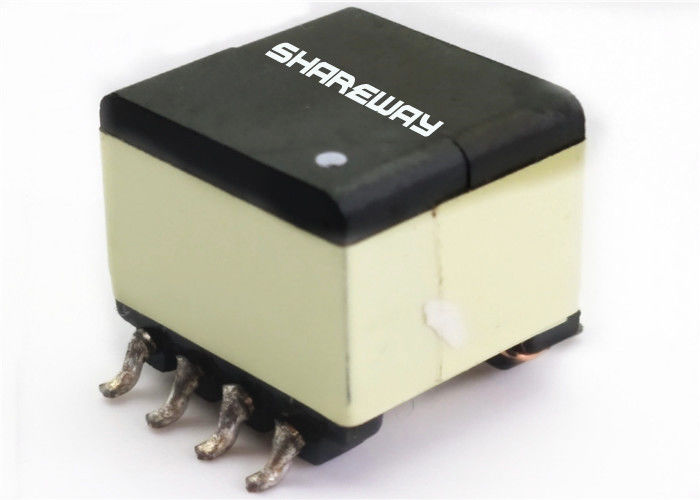

Power Lighting Gate Drive Transformer Magnetic Core Transformer 0





Power Lighting Gate Drive Transformer For power driver
