EE Type Small Current Step Down Gate Drive Transformer
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 1080 | μH | min. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 5.0 | μH | max. |
| DC Resistance 1 | RDC | 1300 | mΩ | max. | |
| DC Resistance 2 | RDC | 600 | mΩ | max. | |
| DC Resistance 3 | RDC | 600 | mΩ | max. | |
| Turns ratio | n | 2.5:1:1 | |||
| Voltage-μSecond | B = 280 mT | ∫Udt | 120 | μVs | typ. |
| Interwinding capacitance | 100 kHz/ 100 mV | CWW | 11.0 | pF | typ. |
| Rated voltage | UR | 80 | V (AC) | ||
| Insulation test voltage | W1 => W2,3 | UT | 2500 | V (AC) | |
| Insulation test voltage | W2 => W3 | UT | 1500 | V (DC) |
Application:
Product Picture:

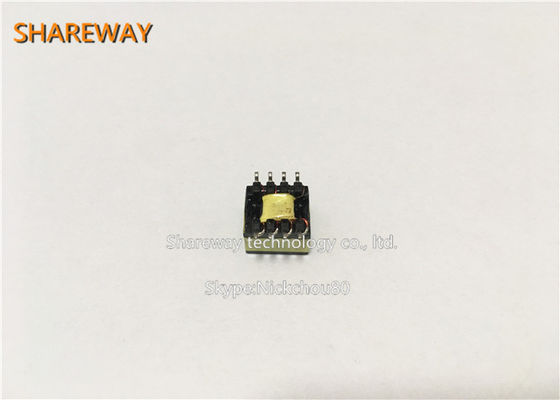

EE Type Small Current Step Down Gate Drive Transformer
