PE-64936NL Ethernet Lan Transformer VDSL High / Low - Pass Filter Transformer

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: PE-64936NL

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tube

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

smd power transformer

,

surface mount transformer

Product Name:
PE-64936NL VDSL High-pass/Low-pass Filter Ethernet Lan Transformer
Type:
High-pass/Low-pass
Material:
Environmental
Lan Transformer OCL:
350uh Min
Isolation Voltage:
1500 Vrms
Operating Temperature Ran:
0 To +70 Degree/-40 To +85 Degree
Product Name:
PE-64936NL VDSL High-pass/Low-pass Filter Ethernet Lan Transformer
Type:
High-pass/Low-pass
Material:
Environmental
Lan Transformer OCL:
350uh Min
Isolation Voltage:
1500 Vrms
Operating Temperature Ran:
0 To +70 Degree/-40 To +85 Degree
PE-64936NL Ethernet Lan Transformer VDSL High / Low - Pass Filter Transformer

PE-64936NL VDSL High-pass/Low-pass Filter Ethernet Lan Transformer


Product Description:

T1/Cept/ISDN-PRI Transformers, Single Through Hole, 1500Vrms



Features:

  • RoHS peak reflow temperature rating: 245°C
  • Extended and standard temperature range
  • Dual and single through hole models available
  • Models matched to leading transceiver ICs
  • UL recognized
  • Isolation Voltage: 1500 Vrms MIN



Electrical Specifications @ 25°C
RoHS-6 Compliant
Part Number
Turns Ratio
(Pri:Sec ±2%)
OCL @ 25°C
(mH MIN)
cw/w
(pF MAX)

LL

(μH MAX)

DCR Pri
(Ω MAX)
DCR Sec
(Ω MAX)
Package/
Schematic
Standard Temperature Range Single Transformers - Operating Temperature 0°C to +70°C
PE-64931NL 1:1:1 (1:2CS) 1.20 25 0.50 0.70 0.70 & 0.70 1-2
PE-64934NL 1:1w 1.20 25 0.50 0.70 0.70 1-2
PE-64936NL 1CT:1 1.20 25 0.80 0.70 0.70 1-5
PE-64937NL 1:1.36 1.20 35 0.80 0.70 0.80 5-6
PE-65351NL 1:2CT 1.20   0.50 0.70 1.30 2-6
PE-65363NL 1:4CT 0.50 40 1.00 0.70 1.50 1-5
PE-65388NL 1:1.15CT 1.50 35 0.60 0.70 0.90 2-6
PE-65389NL 1:1/1.26 1.50 40 0.40 0.70 0.90 2-6
PE-65415NL 1CT:2CT 1.20 30 0.50 0.70 1.20 1-5
PE-68644NL 1CT:1 0.70 20 0.70 0.20 0.80 1-5
Extended Temperature Range Single Transformer - Operating Temperature -40°C to +85°C
PE-65770NL 1:1.15CT 1.50 40 0.80 0.90 1.00 2-6
PE-65770NL 1CT:2CT 1.20 50 0.60 1.00 2.00 2-6
PE-65778NL 1CT:1CT 1.20 40 1.00 1.00 1.00 1-5
TX1252NL 1CT:1 1.20 40 1.00 1.00 1.00 1-5





PE-64936NL VDSL High-pass/Low-pass Filter Ethernet Lan Transformer


Shape and Dimensions:

PE-64936NL Ethernet Lan Transformer VDSL High / Low - Pass Filter Transformer 0

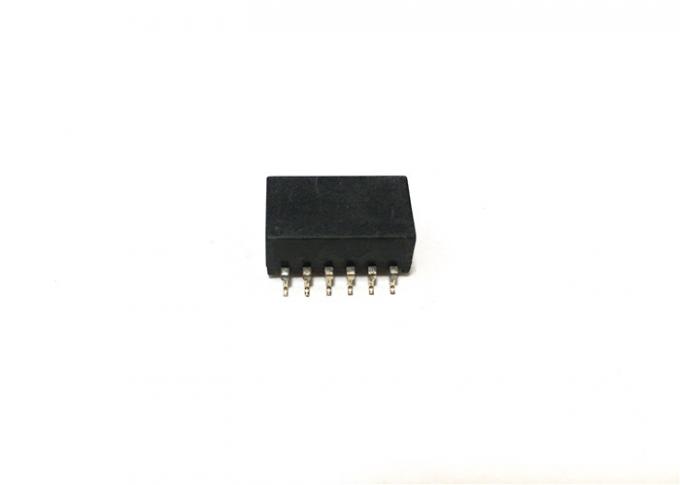

Product Picture:
