Ethernet Power Over Ethernet Transformer Small Low Profile Transformer

Ethernet Power Over Ethernet Transformer Small Low Profile Transformer
Ethernet Power Over Ethernet Transformer Small Low Profile Transformer

Large Image :  Ethernet Power Over Ethernet Transformer Small Low Profile Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray in Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Power Over Ethernet Transformer For Ethernet Application Usage: Ethernet Application
Voltage - Primary: 36 ~ 72V Inductance: 42uH @ 100kHz
Voltage - Isolation: 1500Vrms Operating Temperature: -40°C ~ 125°C
High Light:

ethernet isolation transformer

,

8 pin transformer

Power Over Ethernet Transformer For Ethernet Application


ELECTRICAL SPECIFICATIONS @ 25°C UNLESS OTHERWISE NOTED:

D.C. RESISTANCE (20°C):           5 - 6, ( tie , 4+5, 6+7 ) , 0.02 ohms max.

                                                     1 - 10, 1.06 ohms max.

DIELECTRIC RATING:                 1000VDC, 1 MINUTE TESTED BY APPLYING 1250VDC FOR 1

                                                     SECOND BETWEEN 1 - 6 (TIE 4+5).

INDUCTANCE:                              10.0uH ±10% , 10KHz , 100mVAC, 5 - 6 (TIE 4+5 , 6+7),Ls.

LEAKANGE INDUCTANCE:           0.03uH MAX , 100KHz , 10mAAC, 5 - 6 (TIE 1+10 , 4+5 , 6+7),Ls.

TURNS RATIO:                             (1 - 10):(6- 5) = 10 :1, TIE( 4+5 , 6+7) ±2%.

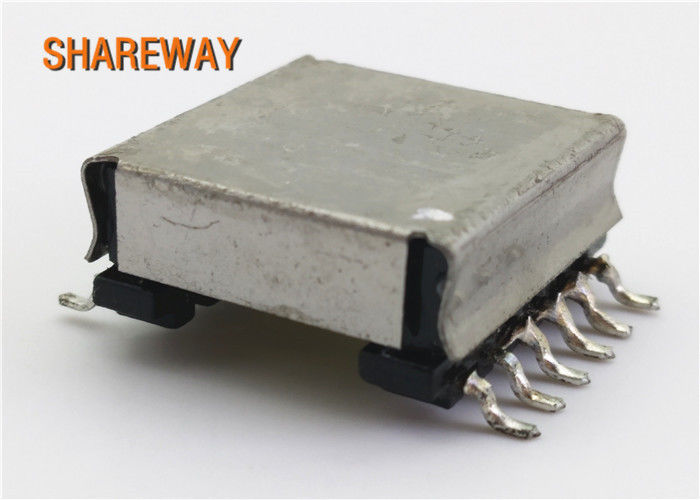

Product Picture:

Ethernet Power Over Ethernet Transformer Small Low Profile Transformer 0





Power Over Ethernet Transformer For Ethernet Application


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
