Product Name: |
Power Over Ethernet Transformer For Electrical Equipment |
Application: |
Electrical Equipment |
Magnetic Transformer Speed: |
10/100/1000/10G Base-TX |
Magnetic Transformer Hi-pot: |
1500Vrms |
Coil Structure: |
PQ |
Pin: |
12 |
Product Name: |
Power Over Ethernet Transformer For Electrical Equipment |
Application: |
Electrical Equipment |
Magnetic Transformer Speed: |
10/100/1000/10G Base-TX |
Magnetic Transformer Hi-pot: |
1500Vrms |
Coil Structure: |
PQ |
Pin: |
12 |
Power Over Ethernet Transformer For Electrical Equipment
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 40 | μH | ±10% |
| Turns ratio | LS | 5 : 1 : 1.25 | ±3% | ||
| Saturation current | |ΔL/L| < 20% | Isat | 5.9 | A | typ. |
| DC Resistance 1 | @ 20°C | RDC1 | 50 | mΩ | max. |
| DC Resistance 2 | @ 20°C | RDC2 | 300 | mΩ | max. |
| DC Resistance 3 | @ 20°C | RDC3 | 10 | mΩ | max. |
| DC Resistance 4 | @ 20°C | RDC4 | 300 | mΩ | max. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 0.8 | μH | max. |
| Insulation test voltage | N1,4 => N2,3 | UT | 1500 | V (DC) |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Product Picture:

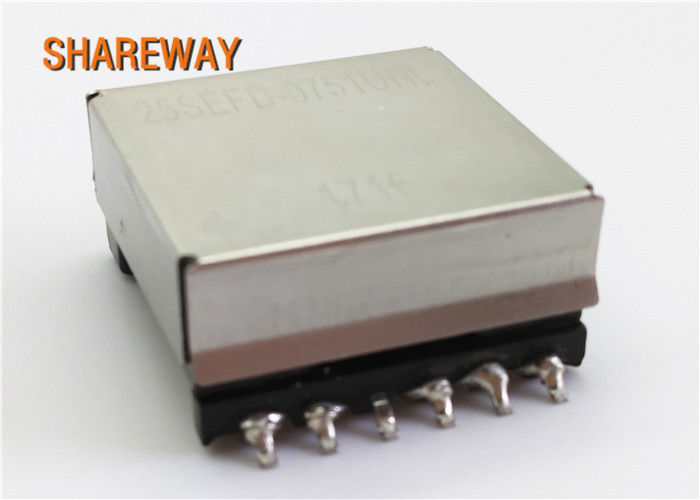

Power Over Ethernet Transformer For Electrical Equipment
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
