Product Name: |
EP-022SG PCB Mount Power Over Ethernet Transformer RoHS Certification |
Mounting: |
Surface Mounting (SMD, SMT) |
Shape: |
Axial |
Magnet Properties: |
Mn-Zn |
Installation: |
Vertical Mounted |
Winding: |
Bobbin, Multi-winding |
Product Name: |
EP-022SG PCB Mount Power Over Ethernet Transformer RoHS Certification |
Mounting: |
Surface Mounting (SMD, SMT) |
Shape: |
Axial |
Magnet Properties: |
Mn-Zn |
Installation: |
Vertical Mounted |
Winding: |
Bobbin, Multi-winding |
EP-022SG PCB Mount Power Over Ethernet Transformer RoHS Certification
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 42 | μH | ±10% |
| Turns ratio | N | 3 : 1 : 1 | ±3% | ||
| Saturation current | |ΔL/L| < 20% | Isat | 6.6 | A | typ. |
| DC Resistance 1 | @ 20°C | RDC1 | 61 | mΩ | max. |
| DC Resistance 2 | @ 20°C | RDC2 | 18 | mΩ | max. |
| DC Resistance 3 | @ 20°C | RDC3 | 180 | mΩ | max. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 0.545 | μH | max. |
| Insulation test voltage | N1,4 => N2,3 | UT | 1500 | V (DC) |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Product Picture:

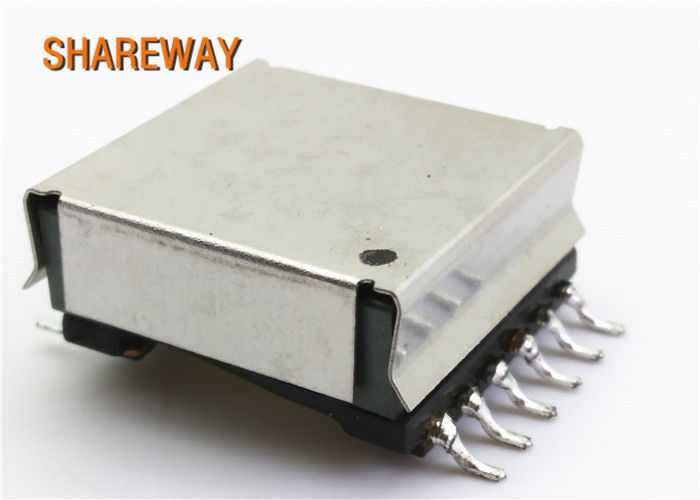

7491194912 PCB Mount Power Over Ethernet Transformer RoHS Certification
