Product Name: |
EP-022SG Vertical Mounted 5-100W Power Over Ethernet Transformer |
Type: |
Vertical Mounted |
Core Material: |
MnZn Power Ferrite Magnet |
Phase: |
Single |
Output Voltage: |
Customized |
Surface: |
Smooth Treatment |
Product Name: |
EP-022SG Vertical Mounted 5-100W Power Over Ethernet Transformer |
Type: |
Vertical Mounted |
Core Material: |
MnZn Power Ferrite Magnet |
Phase: |
Single |
Output Voltage: |
Customized |
Surface: |
Smooth Treatment |
EP-022SG Vertical Mounted 5-100W Power Over Ethernet Transformer
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 41 | μH | ±10% |
| Turns ratio | N | 2.67:1:1:1 | ±3% | ||
| Saturation current | |ΔL/L| < 20% | Isat | 4.2 | A | typ. |
| DC Resistance 1 | @ 20°C | RDC1 | 70 | mΩ | max. |
| DC Resistance 2 | @ 20°C | RDC2 | 20 | mΩ | max. |
| DC Resistance 3 | @ 20°C | RDC3 | 23 | mΩ | max. |
| DC Resistance 4 | @ 20°C | RDC4 | 100 | mΩ | max. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 0.5 | μH | max. |
| Insulation test voltage | prim => sec | UT | 1500 | V (AC) | |
| Insulation test voltage | N2 => N3, N1 => N4 | UT | 500 | V (DC) |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

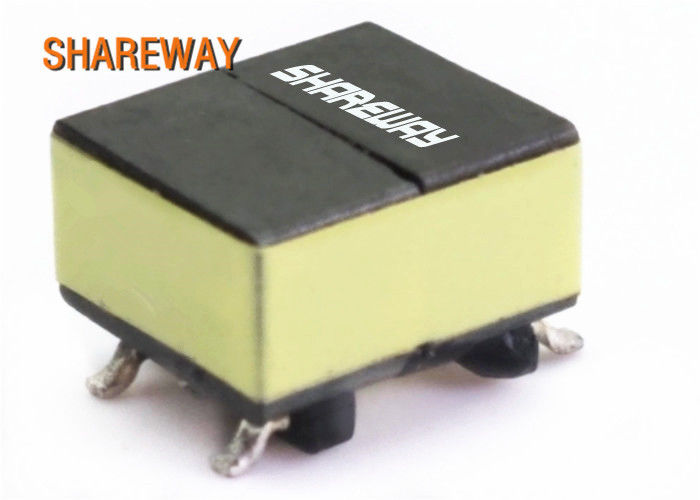

Product Picture:
