Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: EP-182DG
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray in Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
EP-182DG Power Over Ethernet Transformer Led Driver Electronic Transformer |
Power (W): |
1.1W 1.2W 2W 2.4W 2.5W 3W 3.6W 5W 6W 10W 12W 15W 20W 25W |
Output Voltage: |
5V 6V 12V 24V 36V 48V 60V 120V 5 6 12 24 36 48 60 120 V |
Laminations Size: |
EI-13 EI-14 EI-16 EI-19 EI-24 EI-26 EI-28 EI-30 EI-33 EI-35 |
Number Of Pins: |
2pin 4pin 6pin 8pin 10pin 12pin 14pin 2 4 6 8 10 12 14 Pin Pins |
Input Voltage: |
100V 110V 115V 120V 220V 230V 240V 100 110 115 120 220 230 240 V |
Product Name: |
EP-182DG Power Over Ethernet Transformer Led Driver Electronic Transformer |
Power (W): |
1.1W 1.2W 2W 2.4W 2.5W 3W 3.6W 5W 6W 10W 12W 15W 20W 25W |
Output Voltage: |
5V 6V 12V 24V 36V 48V 60V 120V 5 6 12 24 36 48 60 120 V |
Laminations Size: |
EI-13 EI-14 EI-16 EI-19 EI-24 EI-26 EI-28 EI-30 EI-33 EI-35 |
Number Of Pins: |
2pin 4pin 6pin 8pin 10pin 12pin 14pin 2 4 6 8 10 12 14 Pin Pins |
Input Voltage: |
100V 110V 115V 120V 220V 230V 240V 100 110 115 120 220 230 240 V |
EP-182DG Power Over Ethernet Transformer Led Driver Electronic Transformer
ELECTRICAL SPECIFICATIONS @ 25°C UNLESS OTHERWISE NOTED:
| PARAMETER | TEST COMDITIONS | VALUE |
| D.C. RESISTANCE 1-3 | @20°C | 0.315 OHMS ±10%. |
| D.C. RESISTANCE 6-4 | @20°C | 7.95 OHMS ±10% |
| INDUCTANCE 1-3 | 100KHz , 10mVAC , LS | 60uH ±15% |
| SATURATION CURRENT | 20% ROLLOFF FROM INITIAL | 2250mA |
| LEAKAGE INDUCTANCE 1-3 | TIE(4+6),100KHz , 10mVAC , LS | 1.0uH MAX |
| DIEIECTRIC 1-6 | 1500VAC, 1 SECOND | - |
| TURNS RATIO | (6-4):(1-3) | 5:1,±1%. |
GENERAL SPECIFICATIONS:
OPERATING TEMPERATURE RANGE: -40°C TO +125°C INCLUDING TEMP RISE

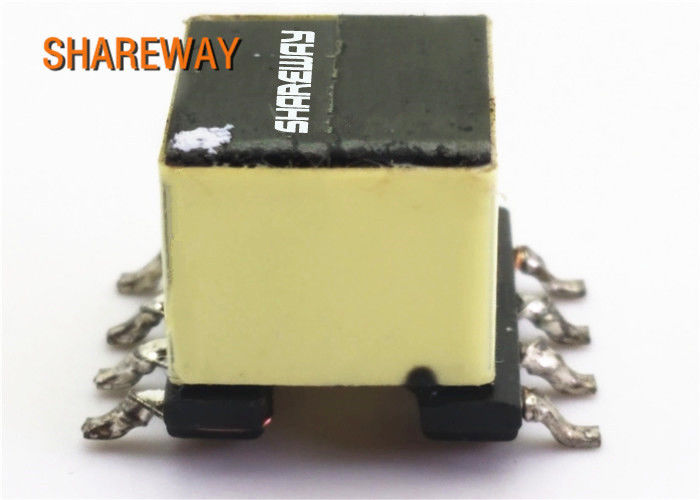

Product Picture:
750311691 Power Over Ethernet Transformer Led Driver Electronic Transformer
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
