Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray in Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
Pulse Encapsulated Power Over Ethernet Transformer |
Type: |
Pulse |
Frequency: |
1KHz -200KHz |
Power: |
1w-10000w |
Material: |
Copper |
Product Type: |
Pin Type |
Product Name: |
Pulse Encapsulated Power Over Ethernet Transformer |
Type: |
Pulse |
Frequency: |
1KHz -200KHz |
Power: |
1w-10000w |
Material: |
Copper |
Product Type: |
Pin Type |
Pulse Encapsulated Power Over Ethernet Transformer
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 21 | μH | ±10% |
| Turns ratio | N | 6:9:9:4 | ±3% | ||
| Saturation current | |ΔL/L| < 20% | Isat | 6.4 | A | typ. |
| DC Resistance 1 | @ 20°C | RDC1 | 25 | mΩ | max. |
| DC Resistance 2 | @ 20°C | RDC2 | 144 | mΩ | max. |
| DC Resistance 3 | @ 20°C | RDC3 | 144 | mΩ | max. |
| DC Resistance 4 | @ 20 °C | RDC4 | 144 | mΩ | max. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 1 | μH | max. |
| Insulation test voltage | prim => sec | UT | 1500 | V (DC) | |
| Insulation Test Voltage | N2 => N3, N1 => N4 | UT 2 | 500 | V (AC) |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Product Picture:

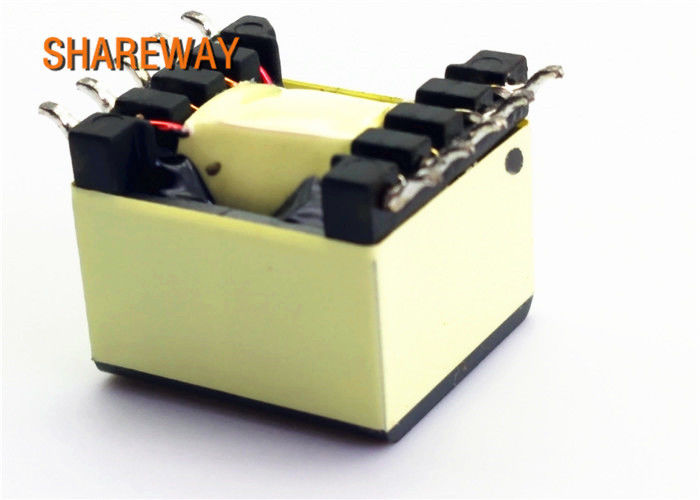

Pulse Encapsulated Power Over Ethernet Transformer
