Product Name: |
Switching Power EE EI EC Power Over Ethernet Transformer |
Material: |
PC44 Ferrite Core |
Winding Material: |
High Grade Copper |
External Structure: |
Vertical Or Horizontal Are Available |
Usage: |
TV, DVD Player, And Audio, Medical, Monitoring Equipment Etc. |
Input Rated Voltage: |
Single-phase 220V-230V Or 110V-120V Or 380V, 50Hz-60Hz |
Product Name: |
Switching Power EE EI EC Power Over Ethernet Transformer |
Material: |
PC44 Ferrite Core |
Winding Material: |
High Grade Copper |
External Structure: |
Vertical Or Horizontal Are Available |
Usage: |
TV, DVD Player, And Audio, Medical, Monitoring Equipment Etc. |
Input Rated Voltage: |
Single-phase 220V-230V Or 110V-120V Or 380V, 50Hz-60Hz |
Switching Power EE EI EC Power Over Ethernet Transformer
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 128 | μH | ±25% |
| Turns ratio | N | 0.47:1:1:0.82 | ±3% | ||
| Saturation current | |ΔL/L| < 20% | Isat | 0.3 | A | typ. |
| DC Resistance 1 | @ 20°C | RDC1 | 18 | mΩ | max. |
| DC Resistance 2 | @ 20°C | RDC2 | 100 | mΩ | max. |
| DC Resistance 3 | @ 20°C | RDC3 | 120 | mΩ | max. |
| DC Resistance 4 | @ 20°C | RDC4 | 350 | mΩ | max. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 0.3 | μH | max. |
| Insulation test voltage | prim => sec | UT | 1500 | V (AC) | |
| Insulation test voltage | N2 => N3, N1 => N4 | UT | 500 | V (AC) | |
| Voltage-μSecond | B = 280 mT | ∫Udt | 71 | μVs | typ. |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

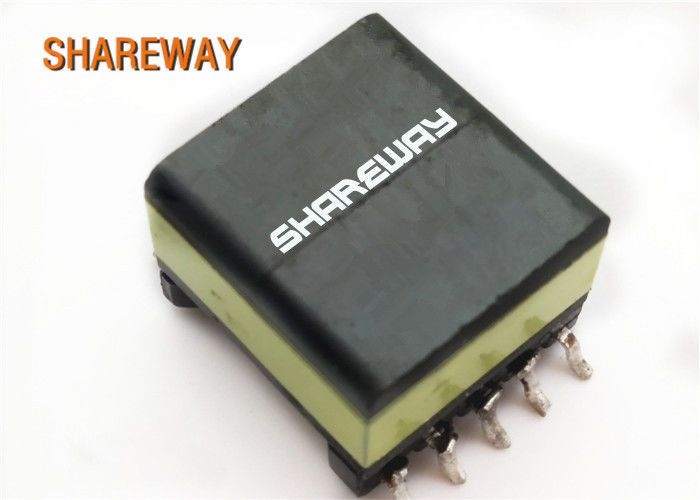

Product Picture:
Switching Power EE EI EC Power Over Ethernet Transformer
