Detailed Product Description
Product Name: Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers Usage: Instrument
Material: Copper Winding Type: Single Phase
Product: High Frequency Transformer Application: DC/DC Converter, RS-485
High Light:

switching power supply transformer

,

small isolation transformer

SA2303 = DA2302-AL Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers


Product Description:

SMT Power Transformers For Texas Instruments SN6501, ISO1176T/35T/3086T
and Analog Devices ADM2482E/2485/2487E RS-485 Transceivers



Feature:

  • Center tapped primary and secondary windings
  • 2500 Vrms, one minute interwinding isolation.
  • Core material Ferrite
  • Terminations RoHS tin-silver over tin over nickel over phos bronze.
    Other terminations are available at additional cost.
  • Weight 0.94 – 1.0 g
  • Ambient temperature –40°C to +125°C
  • Storage temperature Component: –40°C to +125°C.
  • Tape and reel packaging: –40°C to +80°C
Part Number Trader Part Number Turns Ratio (Pri: Sec) Power (W) Inductance Min (uH) Pri / Sec Voltage Lk Max (uH) E-T (V-us) DCR Pri (Ohms) DCR Sec (Ohms)
SA2302 DA2303-AL 1:1.5 7.2 45.6 5V to 6V 1.0 34.4 0.130 0.260
SA2304 DA2304-AL 1:2.2 7.2 17.8 3.3V to 6V 0.43 21.5 0.086 0.232





1. Inductance measured at 1 Vrms, 60 kHz, 0 Adc.
2. Vrms = continuous voltage.
3. Vinst = instantaneous voltage at startup.
4. Ambient operating temperature range −40°C to +85°C.
5. Electrical specifications at 25°C.





SA2302= DA2303-AL Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers


Shape and Dimensions:







Product Picture:

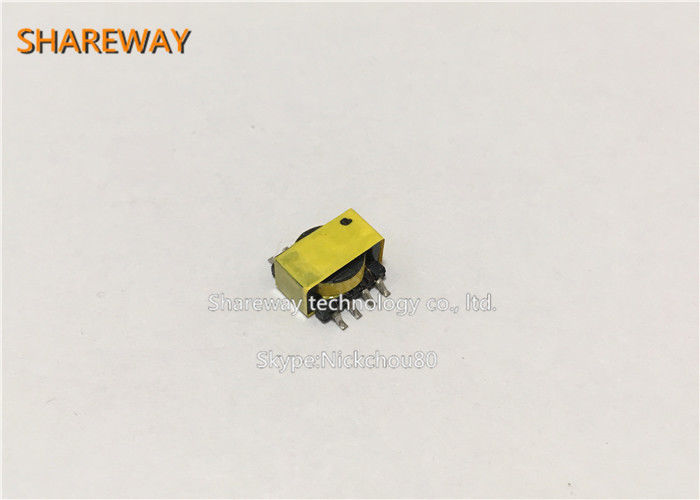

Analog Devices Transceivers High Frequency Transformer SMT SA2303 = DA2302-AL 0





SA2303-AL  = DA2302-AL Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers
