1kVrms Isolation Low Profile Transformer 78613/4C 6 Pin DIL Package Style

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

1kVrms Isolation Low Profile Transformer 78613/4C 6 Pin DIL Package Style

1kVrms Isolation Low Profile Transformer 78613/4C 6 Pin DIL Package Style
1kVrms Isolation Low Profile Transformer 78613/4C 6 Pin DIL Package Style

Large Image :  1kVrms Isolation Low Profile Transformer 78613/4C 6 Pin DIL Package Style

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 78613/4C

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel ,Tube
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal, Western Union
Supply Ability: 300K.PCS/Month
Detailed Product Description
Product Name: 78613/4C THT Type Gate Drive Transformer With UL And RoHs Cetified Mounting: THT
Application: Telecommunication Material: UL 94 V-0 Package Materials
Pin: 6 Pins
High Light:

smd audio transformer

,

toroidal isolation transformer

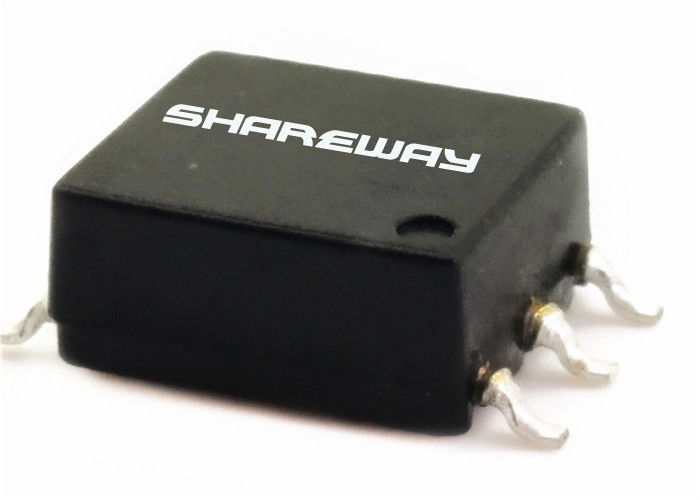

78613/4C Gate Drive Transformer With 6 Pin DIL Package Style


DESCRIPTION:
The 786 series is a comprehensive range of general-purpose pulse transformers. Common
applications include line coupling, and matching for isolating. The devices can also be used in small
isolated power supplies and also as common mode chokes in filtering applications.

FEATURES:

  • RoHS compliant
  • 4 Configurations
  • Primary inductance to 10mH
  • 1kVrms isolation
  • Industry standard pinout
  • Industry standard pinout
  • UL 94 V-0 package materials
  • Low profile
  • Toroidal construction
  • Fully encapsulated



Trader Part Number Turns
Ratio

Min.
Primary

Inductance

Primary Min.
Volt-time
Product, Et
Typ.
Leakage
Inductance
Typ.
Interwinding
Capacitance
Max.
DC
Resistance
Isolation
Voltage
μH Vμs μH pF Ω Vrms
78604/4C 2:1 67 4 0.41 4 0.18 1000
78604/3C 2:1 200 6 0.49 9 0.25
78604/2C 2:1 500 10 0.65 13 0.34
78604/8C 2:1 1000 15 0.76 20 0.46
78604/1C 2:1 2000 20 0.99 29 0.60
78604/16C 2:1 4000 28 1.61 50 0.85
78604/9C 2:1 10000 56 1.64 72 1.23
78613/4C 1CT:1 67 4 0.30 7 0.20
78613/3C 1CT:1 200 6 0.65 12 0.25
78613/2C 1CT:1 500 10 1.07 20 0.36
78613/8C 1CT:1 1000 15 1.13 35 0.48
78613/1C 1CT:1 2000 20 1.53 47 0.63
78613/16C 1CT:1 4000 28 1.98 64 0.88
78613/9C 1CT:1 10000 56 3.83 72 1.33
78615/4C 1CT:1CT 67 4 1.21 3 0.17
78615/3C 1CT:1CT 200 6 3.64 5 0.24
78615/2C 1CT:1CT 500 10 6.86 7 0.34
78615/8C 1CT:1CT 1000 15 11.9 10 0.45
78615/1C 1CT:1CT 2000 20 16.0 16 0.60
78615/16C 1CT:1CT 4000 28 37.7 20 0.87
78615/9C 1CT:1CT 10000 56 44.5 19 1.33
