Dual SMT Package Ethernet Lan Transformer T1022 Contains Transmit / Receive

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: T1022

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Reel ,Tube

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

small electric transformer

,

surface mount transformer

Product Name:
T1022 Dual SMT Package Contains Both Transmit And Receive Ethernet Lan Transformer
Type:
Lan Transformer
Effect:
Transmit And Receive
Mount:
Dual SMT
Pin:
16 Pins
Size:
12.83mm*9.53mm*6.22mm
Product Name:
T1022 Dual SMT Package Contains Both Transmit And Receive Ethernet Lan Transformer
Type:
Lan Transformer
Effect:
Transmit And Receive
Mount:
Dual SMT
Pin:
16 Pins
Size:
12.83mm*9.53mm*6.22mm
Dual SMT Package Ethernet Lan Transformer T1022 Contains Transmit / Receive

T1022 Dual SMT package contains both transmit and receive Ethernet Lan Transformer


Description:

T1/CEPT/ISDN-PRI TRANSFORMERS Dual Surface Mount, 1500Vrms, Small Package



Feature:

  • Dual SMT package contains both transmit and receive transformers
  • Models matched to leading transceiver ICs
  • UL recognized (some parts pending approval)
  • RoHS compliant versions available upon request



Electrical Specifications @ 25°C
Part NO.

Turns Ratio

(Pri:Sec ±5%)

OCL

(mH MIN)

CW/W

(pF MAX)

LL

(μH MAX)

DCR Pri

(Ω MAX)

Primary

Pins

PE-65861 1CT:2CT & 1CT:2CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 16-14, 6-8
PE-65862 1CT:2CT & 1:1.36CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 16-14, 6-8
PE-65865 1:1.15CT & 1CT:2CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 16-14, 6-8
PE-65866 E 1:1/1.26 & 1CT:2CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 16-14, 6-8
PE-65870 1CT:1.15CT & 1CT:1.15CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 1-3, 6-8
T1022 1CT:1CT & 1CT:1.5CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 16-14, 6-8
PE-68678 1CT:1CT & 1CT:2CT 1.20 & 1.20 30 & 30 .60 & .60 0.70 & 0.70 16-14, 6-8
PE-68786 1CT:1.41CT & 1CT:1.41CT 1.00 & 1.00 30 & 30 .60 & .60 0.70 & 0.70 16-14, 11-9
T1023 1CT:1.41CT & 1CT:1.41CT 1.00 & 1.00 30 & 30 .60 & .60 0.70 & 0.70 1-3, 11-9





T1022 Dual SMT package contains both transmit and receive Ethernet Lan Transformer


Shape and Dimensions:

Dual SMT Package Ethernet Lan Transformer T1022 Contains Transmit / Receive 0





Product Picture:

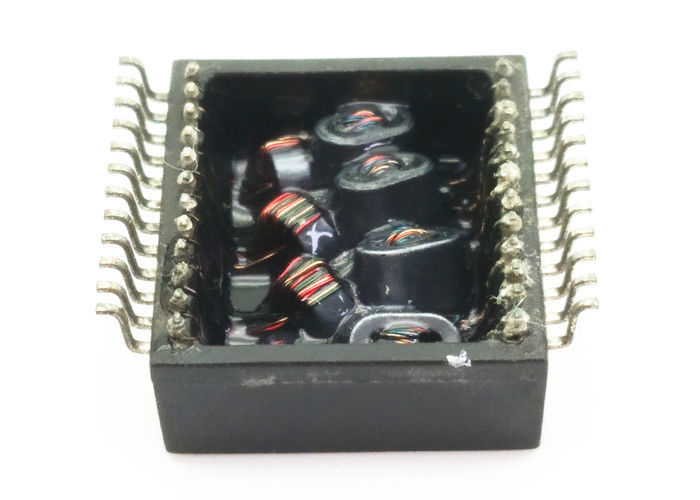

Dual SMT Package Ethernet Lan Transformer T1022 Contains Transmit / Receive 1
