Shielded Low Profile Inductor Surface Mount 34122C With RoHS Compliant

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 34122C

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray, Tape or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

wire wound chip inductors

,

high current power inductors

Product Name:
34122C Shielded Surface Mount Inductors SMD Power Inductor With RoHS Compliant
Shield:
Shielded
Mount:
Surface Mount
Type:
Power Inductor
Material:
Copper Wire, Magnetic Ring
Size:
5.2mm*5.2mm*2.0mm
Product Name:
34122C Shielded Surface Mount Inductors SMD Power Inductor With RoHS Compliant
Shield:
Shielded
Mount:
Surface Mount
Type:
Power Inductor
Material:
Copper Wire, Magnetic Ring
Size:
5.2mm*5.2mm*2.0mm
Shielded Low Profile Inductor Surface Mount 34122C With RoHS Compliant

34122C Shielded Surface Mount Inductors SMD Power Inductor With RoHS compliant


Description:

The 3400 series is a range of bobbin-wound, shielded inductors. They are suitable for powerline
filtering found in consumer electronics such as desktop computers, handheld devices and GPS
systems, as well as in a vast range of industrial and telecom applications including network hubs,
bridges/routers, and high frequency wireless communication devices.
These surface mount inductors are extremely compact and have an integral shield, making them
useful in EMI sensitive applications.



Feature:

  • RoHS compliant
  • Inductance range from 1.2μH to 1mH
  • Small footprint
  • Ultra-low profile
  • UL 94V-0 packaging materials
  • Tape & reel
  • J-STD-020C reflow
  • Custom inductance values available
Part number Inductance, L DC Current2 DC Resistance
±20% Max. Max.
μH A Ω
34122C 1.2 ± 30% 2.50 0.030
34152C 1.5 ± 30% 2.10 0.040
34222C 2.2 ± 30% 1.70 0.050
34332C 3.3 ± 30% 1.50 0.080
34472C 4.7 ± 30% 1.30 0.100
34682C 6.8 ± 30% 1.00 0.150
34103C 10 0.80 0.200
34153C 15 0.68 0.280
34223C 22 0.53 0.360
34333C 33 0.48 0.560
34473C 47 0.41 0.850
34683C 68 0.35 1.050
34104C 100 0.28 1.700
34154C 150 0.23 2.400
34224C 220 0.18 3.050
34334C 330 0.15 4.550
34474C 470 0.13 7.650
34684C 680 0.11 11.150
34105C 1000 0.09 15.000





34122C Shielded Surface Mount Inductors SMD Power Inductor With RoHS compliant


Shape and Dimensions:

Shielded Low Profile Inductor Surface Mount 34122C With RoHS Compliant 0

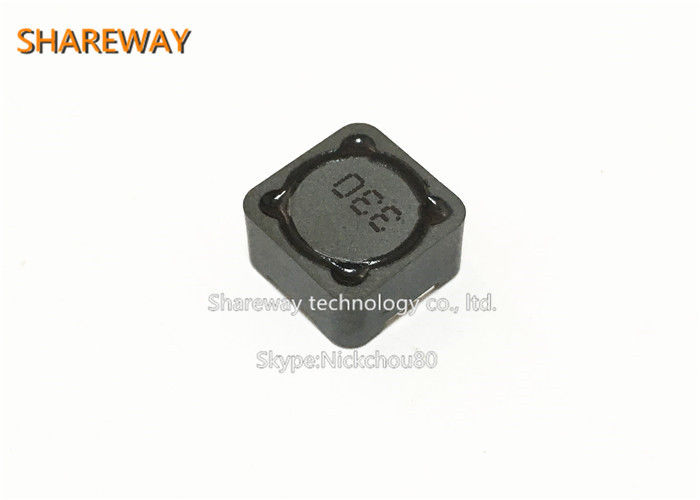

Product Picture:Shielded Low Profile Inductor Surface Mount 34122C With RoHS Compliant 1





34122C Shielded Surface Mount Inductors SMD Power Inductor With RoHS compliant


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
