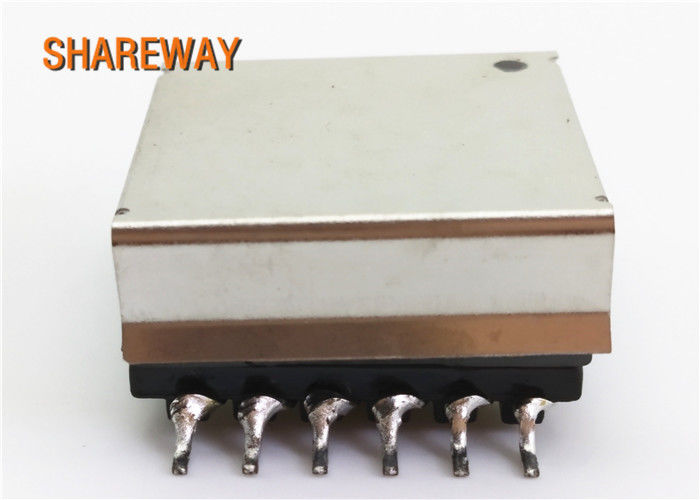

Product Name: EP-515SG SMD Shield Power Over Ethernet Transformer For Electronic Equipment Application: Electronic Equipment
Type: SMPS Flyback Transformer Shield: Shielded
Size: 29.08mm*23.11mm*11.43mm Mount: SMT / SMD
High Light:

ethernet isolation transformer

,

8 pin transformer

EP-515SG SMD Shield Power Over Ethernet Transformer For Electronic Equipment


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C. RESISTANCE     1-3 tie(1+2,3+4),@20°C 0.092 ohms max
D.C. RESISTANCE     7-12 tie(7+8+9,10+11+12),@20°C 0.036ohms max
D.C. RESISTANCE       5-6 @20°C 0.007 ohms max
INDUCTANCE          1-3 tie(1+2,3+4),150KHz,100mVAC,Ls 9/07uH min.
SATURATION CURRENT 20% rolloff from initial 8A
LEAKAGE INDUCTANCE    1-3 tie(1+2,3+4,7 thru 12),100KHz,50mVAC,Ls 120nH typ.250nH max
DIELECTRIC     1-12 tie(1+2,10+11+12),5000VAC,1 second 1500VAC,1minute
TURNS RATIO (1-3):(12-9) 500VAC,1minute
TURNS RATIO (1-3):(11-8) 71.714:1±2%
TURNS RATIO (1-3):(10-7) 3:1±2%
TURNS RATIO (1-3):(5-6)
TURNS RATIO (1-3):(2-4)



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C ,including temp rise.
