J0G-0007NL Low Profile RJ45 Jack with Internal Magnetic or transformer
Product Description:
100/1000Base-T RJ45 single port (1x1) Tab-UP integrated magnetics connector, designed to support
applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC
applications.
Features and Benefits:
| Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C | |||||||||||
| Part Number |
Side EMI Tabs |
Insertion Loss TX/RX (dB ) |
Return Loss (dB TYP) 100Ω (± 15 Ω) |
Crosstalk (dB TYP) |
Common Mode Rejection (dB TYP) |
Hipot (Vrms MIN) |
|||||
| 1-100 MHz |
1-10 MHz |
30 MHz |
60-80 MHz |
80-100 | 1-10 MHz |
32-65 MHz |
65-100 MHz |
1-125 MHz |
@ 60Hz 1 MIN |
||
| J0G-0001NL | Horizontal | -1.2 | -18 | -18 | -12 | -10 | -40 | -35 | -30 | -30 | 1500 |
| J0G-0003NL | No Tabs | -1.0 | -18 | -18 | -12 | -10 | -40 | -35 | -30 | -30 | 1500 |
| J0G-0007NL | Horizontal | -1.0 | -18 | -18 | -12 | -10 | -40 | -35 | -30 | -30 | 1500 |
| J0G-0009NL | No Tabs | -1.0 | -18 | -18 | -12 | -10 | -40 | -35 | -30 | -30 | 1500 |
J0G-0007NL Low Profile RJ45 Jack with Internal Magnetic or transformer
Shape and Dimensions:

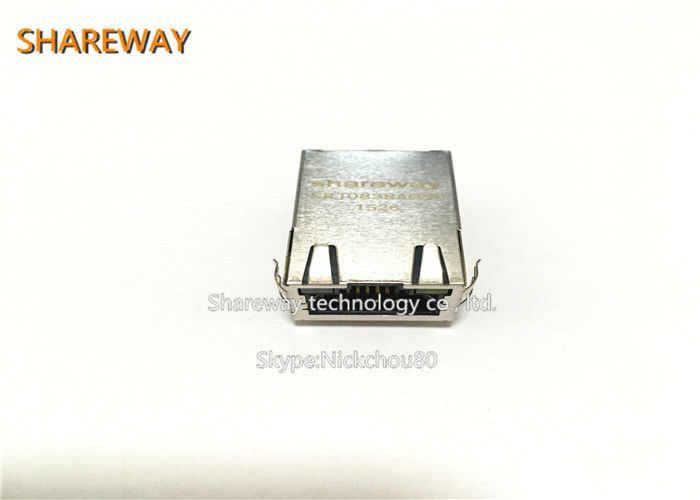

Product Picture:
